Engine displacement
125
2
Model
MEDLEY
3
Year
2017
4
Trim
Medley 4T ie ABS
5
Parts Catalog
Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
by
CYLINDER HEAD - VALVES
Front glove-box - Knee-guard panel
1
1
2
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
31
32
33
33
34
35
36
37
38
39
40
41
42
42
43
44
45
46
47
48
1
Coffre complet
1B006822500MH
£432,30 Unit Price incl. VAT
1
Coffre complet
1B0017105000C
Not Available
2
Porte de coffre peinte
1B001681000MH
£48,80 Unit Price incl. VAT
2
Coffre avant
1B0068230000C
Not Available
3
Contre-porte
1B001709
£55,60 Unit Price incl. VAT
4
Self tapping screw
297498
£0,60 Unit Price incl. VAT
5
Square
252420
£3,88 Unit Price incl. VAT
6
Self tapping screw
297498
£0,60 Unit Price incl. VAT
7
Pin
577400
£4,68 Unit Price incl. VAT
8
Lever
577861
£5,75 Unit Price incl. VAT
9
Spring
577399
£7,40 Unit Price incl. VAT
10
Door fixing bracket
257614
£1,72 Unit Price incl. VAT
11
Self tapping screw
297498
£0,60 Unit Price incl. VAT
12
Top box weatherseal
CM006315
£8,17 Unit Price incl. VAT
13
Crochet porte-sac
1B006813
£49,45 Unit Price incl. VAT
14
Support crochet porte-sac
1B001868
£16,34 Unit Price incl. VAT
15
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
16
Spring plate
CM017410
£0,71 Unit Price incl. VAT
17
Pin
575021
£13,88 Unit Price incl. VAT
18
Self tapping screw D4x16
CM180701
£0,52 Unit Price incl. VAT
19
Spring
464620
£4,97 Unit Price incl. VAT
20
Pawl
575607
£3,14 Unit Price incl. VAT
21
Spring
577005
Not Available
22
Pin
575021
£13,88 Unit Price incl. VAT
23
Bouchon
1B002864
£15,10 Unit Price incl. VAT
24
Catch spring
299693
£0,70 Unit Price incl. VAT
25
Encadrement
1B0020730000C
£15,78 Unit Price incl. VAT
25
Encadrement
1B002073000MH
£15,04 Unit Price incl. VAT
26
Support p-fusibles
1B003433
£10,01 Unit Price incl. VAT
27
Self tapping screw D4x16
CM180701
£0,52 Unit Price incl. VAT
28
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
29
Spring plate
CM017410
£0,71 Unit Price incl. VAT
30
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
31
Spring plate M6
254485
£1,64 Unit Price incl. VAT
32
screw
CM179202
£1,27 Unit Price incl. VAT
33
Abattant batteria
1B001717000MH
£14,62 Unit Price incl. VAT
33
Abattant batteria
1B0017170000C
Not Available
34
Self-tap screw
CM178604
£1,24 Unit Price incl. VAT
35
Expansion plug
157716
£0,16 Unit Price incl. VAT
36
Doigt de la serrure
1B002031
£4,63 Unit Price incl. VAT
37
Self locking nut
577620
£0,97 Unit Price incl. VAT
38
Special screw
299972
£1,14 Unit Price incl. VAT
39
Self tapping screw D4x16
CM180701
£0,52 Unit Price incl. VAT
40
Support batterie
1B001859
£16,22 Unit Price incl. VAT
41
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
42
Fermeture centrale
1B001685000MH
£14,62 Unit Price incl. VAT
42
Fermeture centrale
1B0016850000C
£14,62 Unit Price incl. VAT
43
Spring plate
CM017410
£0,71 Unit Price incl. VAT
44
Self-tap screw
CM178604
£1,24 Unit Price incl. VAT
45
Spring plate
CM017410
£0,71 Unit Price incl. VAT
46
Gripper clip
D9004468091
£4,58 Unit Price incl. VAT
47
Flat washer 16x6,5x1,5
013880
Not Available
48
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT

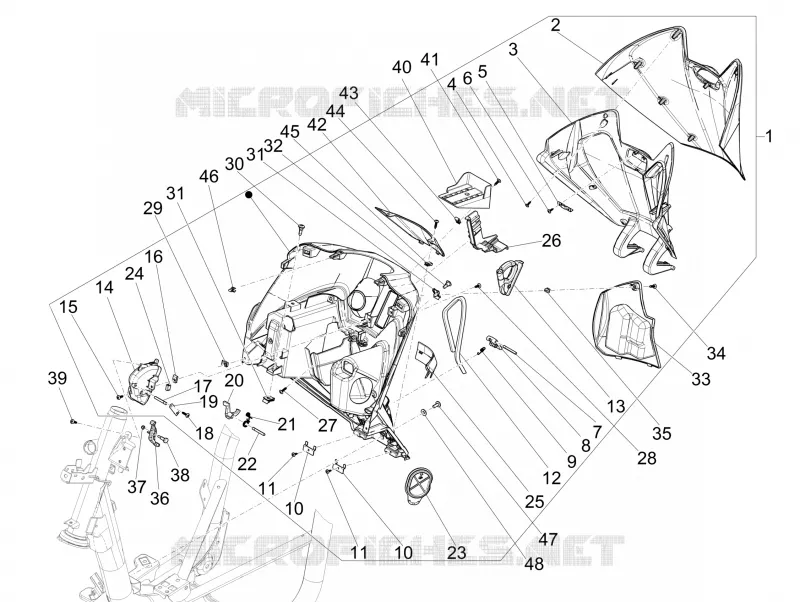

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
