Engine displacement
125
2
Model
MEDLEY
3
Year
2017
4
Trim
Medley 4T ie ABS
5
Parts Catalog

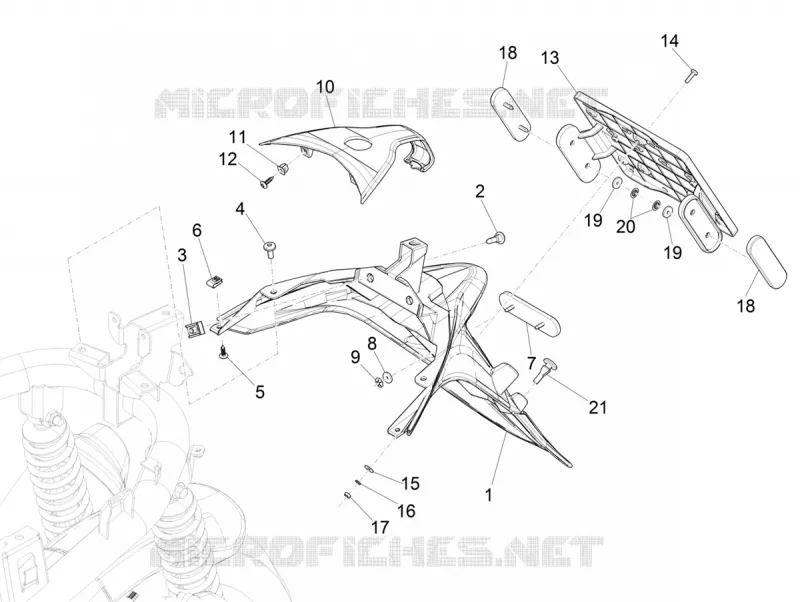

Rear cover - Splash guard
6
Parts Diagram
Parts Catalog
Rear luggage rack
by
Cdi magneto assy
Rear cover - Splash guard
1
2
3
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
10
10
10
10
11
12
13
13
14
15
16
17
18
18
19
19
20
21
1
Bavette arrière
1B0017080000C
£42,64 Unit Price incl. VAT
2
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
3
Spring plate M6
254485
£1,64 Unit Price incl. VAT
4
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
5
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
6
Spring plate
CM017410
£0,71 Unit Price incl. VAT
7
Reflector
5A000498
£11,87 Unit Price incl. VAT
8
Spacer
5A000387
£0,50 Unit Price incl. VAT
9
Plate
5A000388
£1,13 Unit Price incl. VAT
10
Fermeture arrière des carénages
1B001704000DU
£40,04 Unit Price incl. VAT
10
Fermeture arrière des carénages
1B001704000BR
Not Available
10
Fermeture arrière des carénages
1B001704000S7
£40,04 Unit Price incl. VAT
10
Fermeture arrière des carénages
1B001704000HR
Not Available
10
Fermeture arrière des carénages
1B001704
£50,41 Unit Price incl. VAT
10
Fermeture arrière des carénages
1B001704400ND
£40,32 Unit Price incl. VAT
10
Fermeture arrière des carénages
1B001704000VL
Not Available
10
Fermeture arrière des carénages
1B001704000DE
£40,04 Unit Price incl. VAT
10
Fermeture arrière des carénages
1B001704000S5
£40,04 Unit Price incl. VAT
10
Fermeture arrière des carénages
1B001704000BT
£38,14 Unit Price incl. VAT
10
Fermeture arrière des carénages
1B001704000NS
Not Available
10
Fermeture arrière des carénages
1B001704000VT
£40,04 Unit Price incl. VAT
10
Fermeture arrière des carénages
1B001704000HI
£40,04 Unit Price incl. VAT
11
Expansion plug
157716
£0,16 Unit Price incl. VAT
12
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
13
Porte-plaque
1B006497
£15,74 Unit Price incl. VAT
13
Number plate holder
1B003614
Not Available
14
Screw M4x12
015996
Not Available
15
Flat washer 4,2x12x1
013763
Not Available
16
Flat washer 4,2x7,6x0,9
016404
Not Available
17
Nut M4
020104
Not Available
18
Reflector
5A000498
£11,87 Unit Price incl. VAT
19
Spacer
5A000387
£0,50 Unit Price incl. VAT
20
Plate
5A000388
£1,13 Unit Price incl. VAT
21
Pad
672244
£2,38 Unit Price incl. VAT
