Engine displacement
125
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog
Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
WATERPUMP
by
Meter combination - Cruscotto
Wheel huosing - Mudguard
1
1
1
1
1
1
1
1
1
1
1
1
1
2
3
4
5
6
7
8
8
9
10
11
12
12
12
13
14
15
1
Garde-boue avant
1B001676000S7
Not Available
1
Garde-boue avant
1B001676000BR
£312,05 Unit Price incl. VAT
1
Garde-boue avant
1B001676000DU
£312,05 Unit Price incl. VAT
1
Garde-boue avant
1B001676000S5
Not Available
1
Garde-boue avant
1B001676000NS
Not Available
1
Garde-boue avant
1B001676000DE
Not Available
1
Garde-boue avant
1B001676000HR
£247,94 Unit Price incl. VAT
1
Garde-boue avant
1B001676000HI
Not Available
1
Garde-boue avant
1B001676000ND
Not Available
1
Garde-boue avant
1B001676000VT
Not Available
1
Garde-boue avant
1B001676
£249,65 Unit Price incl. VAT
1
Garde-boue avant
1B001676000BT
Not Available
1
Garde-boue avant
1B001676000VL
Not Available
2
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
3
Compart.roue
1B001675
Not Available
4
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
5
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
6
Spring plate
CM017410
£0,71 Unit Price incl. VAT
7
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
8
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
9
Spring plate
CM017410
£0,71 Unit Price incl. VAT
10
Self tapping screw D4x16
CM180701
£0,52 Unit Price incl. VAT
11
Gripper clip
D9004468091
£4,58 Unit Price incl. VAT
12
Garde-boue Ar.
1B001867
£33,79 Unit Price incl. VAT
12
Garde-boue arrière
1B004153
Not Available
13
screw
CM179202
£1,27 Unit Price incl. VAT
14
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
15
Spring plate
CM017410
£0,71 Unit Price incl. VAT

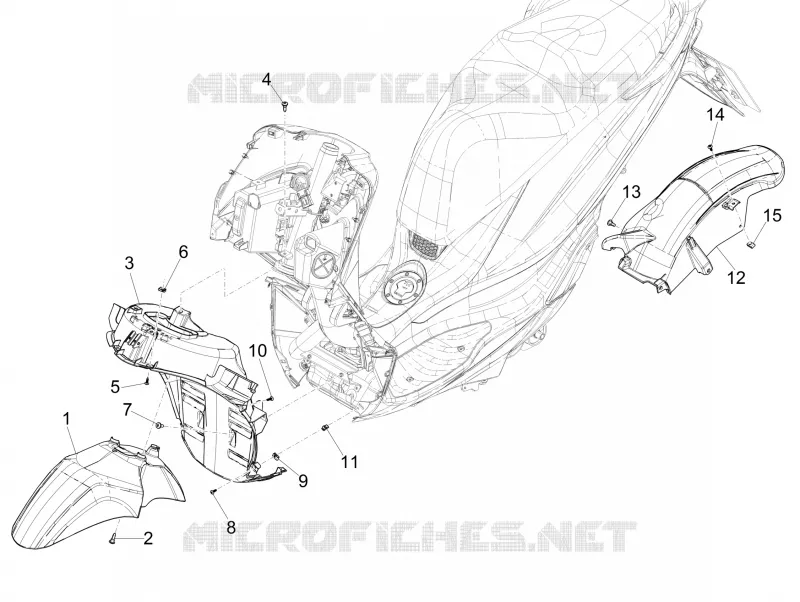

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
