Tank for Medley 4T ie ABS from 2017

Free shipping for all orders to United Kingdom over £150! See conditions.

Tank

1A

Réservoir de carburant complet.

1B002003

£230,78 Unit Price incl. VAT

1B

Réservoir de carburant complet.

1B002950

£218,29 Unit Price incl. VAT

2

Indicateur niveau essence

1D001226

£49,75 Unit Price incl. VAT

3

Gasket

676200

£19,80 Unit Price incl. VAT

4

Nut

709116

£1,72 Unit Price incl. VAT

5

Flat washer 16x6,5x1,5

013880

Not Available

6

Kit serrures

1B004018

£324,80 Unit Price incl. VAT

7

Hex socket screw M4x16

959559

£1,27 Unit Price incl. VAT

8

Fuel tank filler cap

959465

£59,21 Unit Price incl. VAT

8

Tubulure rempl.rés.ess.

1B003970

£42,65 Unit Price incl. VAT

9

Hose

673778

£32,11 Unit Price incl. VAT

10

Hose clamp

CM001920

£3,65 Unit Price incl. VAT

11

Hose clamp

CM001919

£2,35 Unit Price incl. VAT

12

Hex screw M6x20

018639

Not Available

13

Spring washer 6,4x11,8x1

016406

Not Available

14

Flat washer 16x6,5x1,5

013880

Not Available

15

Spring plate M6

254485

£1,64 Unit Price incl. VAT

16A

Fuel pump

642888

£369,95 Unit Price incl. VAT

16B

Fuel pump cpl.

1D001375

£238,20 Unit Price incl. VAT

17

O-ring

781056

£7,64 Unit Price incl. VAT

18A

Gasket

1B002841

£17,94 Unit Price incl. VAT

18B

Gasket

1B002953

£2,21 Unit Price incl. VAT

19A

Flange

1B003873

£2,96 Unit Price incl. VAT

19B

Bride pompe essence

1B002952

£3,02 Unit Price incl. VAT

20

Nut

709116

£1,72 Unit Price incl. VAT

21

Tuyau de carburant compl.

1B004080R

£67,06 Unit Price incl. VAT

21

Tuyau de carburant compl.

1B005553R

£83,00 Unit Price incl. VAT

22

Wiring clip

1B001321

£4,37 Unit Price incl. VAT

23

Screw w/ flange M6x10

969296

£1,27 Unit Price incl. VAT

24

Non return spring

CM006911

£43,00 Unit Price incl. VAT

25

Reniflard complet

1B0027645

£41,48 Unit Price incl. VAT

26

Safety valve

1B005112R

£43,06 Unit Price incl. VAT

26

Safety valve

CM179008

£43,78 Unit Price incl. VAT

27A

Fuel pump bracket

1B004048

£1,36 Unit Price incl. VAT

27B

Patte de blocage tuyau carburant

1B004100

£1,39 Unit Price incl. VAT

28

Stop nut M5-6H DIN 985

804457

£1,07 Unit Price incl. VAT

29

Hose clamp

CM001901

£1,76 Unit Price incl. VAT

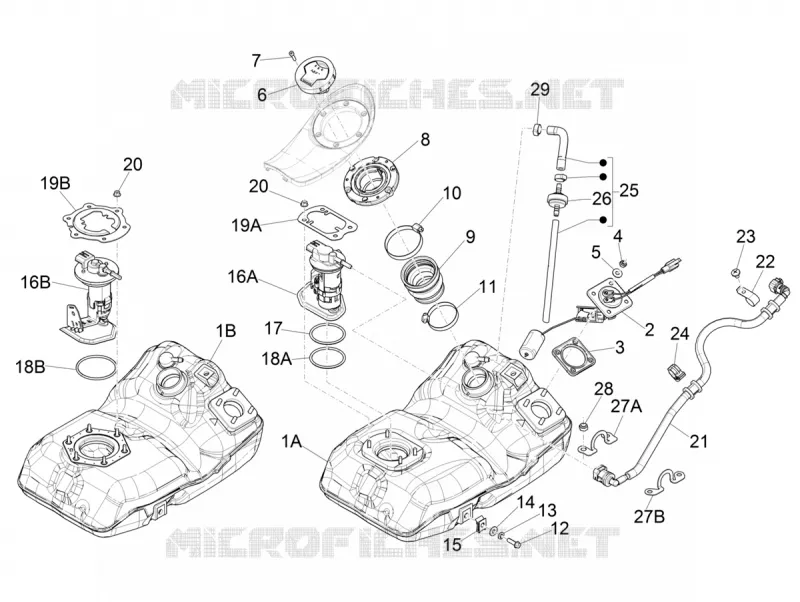

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
