REAR WHEEL for Liberty 4T "Single" from 2014

Free shipping for all orders to United Kingdom over £150! See conditions.

REAR WHEEL

1

Roue arrière

1C001606R

Not Available

1

Roue arrière 14 x 2.50"

1C001722

£212,44 Unit Price incl. VAT

1

Roue arrière 14 x 2.50"

1C003268

£223,44 Unit Price incl. VAT

1

Roue arrière

1C002527R

£212,44 Unit Price incl. VAT

2

Moyeu roue arr.

1C000945

£20,52 Unit Price incl. VAT

3

screw M8x30

015792

Not Available

4

Spring washer

709047

£0,70 Unit Price incl. VAT

5

Flat washer 15x8,4x1,5

003058

Not Available

6

Tubeless tyre valve

270991

£6,00 Unit Price incl. VAT

7

Roue phonique ABS

1A004917

£10,85 Unit Price incl. VAT

8

Hex socket screw M6x20

271147

Not Available

9

Rear brake disc

667032

£53,26 Unit Price incl. VAT

9

Brake disc

58547R

Not Available

10

Hex socket screw

564606

£1,12 Unit Price incl. VAT

10

Vis à tête bombée Torx

1C004053

£2,00 Unit Price incl. VAT

11

Bras de suspension droit complet

1A006223

£234,60 Unit Price incl. VAT

12

Gasket ring 25-47-5

1A005943

£4,06 Unit Price incl. VAT

13

Roulement radial

B015725

Not Available

14

Circlip

006647

Not Available

15

Gasket ring 25-37-6

1A005942

£3,77 Unit Price incl. VAT

16

Nut M16x13

563728

£2,48 Unit Price incl. VAT

17

Chapeau d'arrêt d'écrou

1C004746

£3,79 Unit Price incl. VAT

18

Split pin

5A000046

£3,26 Unit Price incl. VAT

19

Vis M8x24

1A004486

£0,95 Unit Price incl. VAT

20

Spring washer

709047

£0,70 Unit Price incl. VAT

21

Washer

013776

Not Available

22

Pneu arrière Vee rubber 110/80-14"

1C002959

Not Available

22

Pneu arrière Maxxis 110/80-14"

1C001587

£163,46 Unit Price incl. VAT

23

Spacer

1C002175

£8,27 Unit Price incl. VAT

24

Rear wheel spacer

1C002344

£16,13 Unit Price incl. VAT

25

Capteur arrière ABS

1D0013515

Not Available

26

Torx Screw

880285

£1,24 Unit Price incl. VAT

27

Flat washer

669282

£2,36 Unit Price incl. VAT

28

Washer Ã˜5,3xÃ˜10x0,5

006975

Not Available

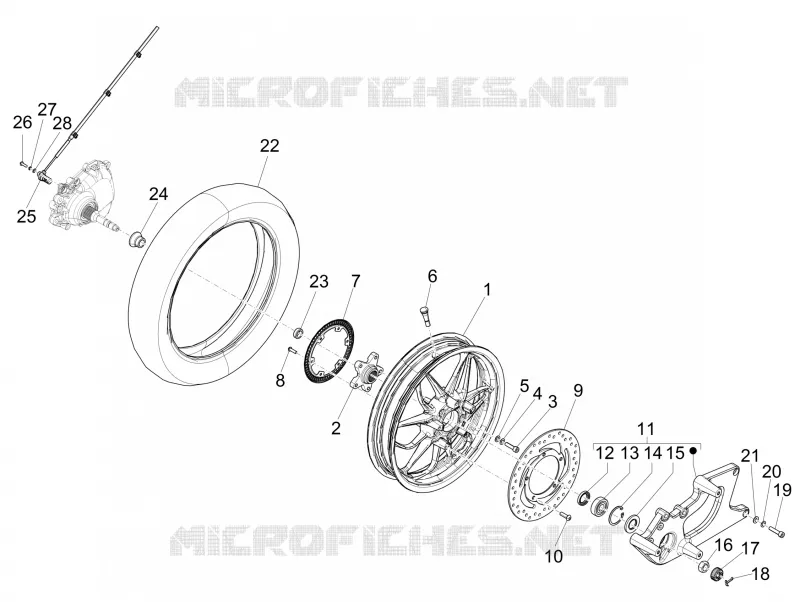

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
