1
Engine displacement
125
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog

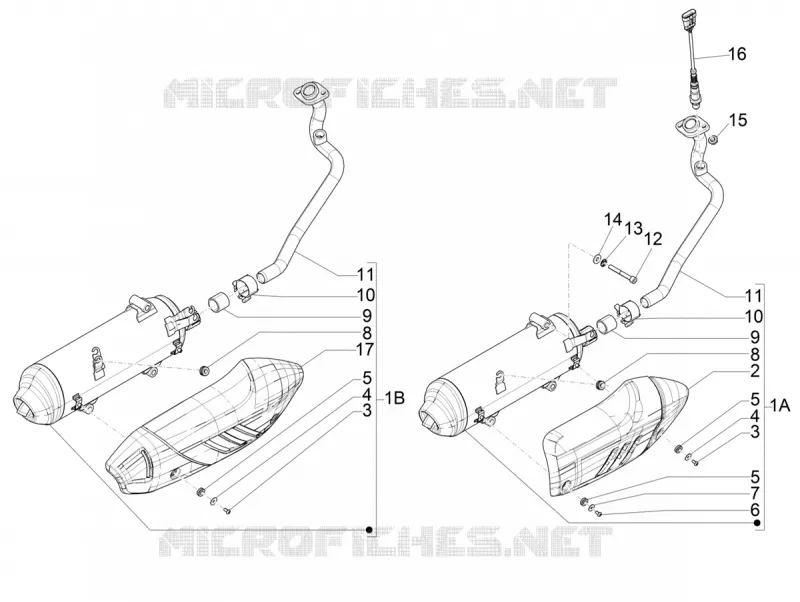

EXHAUST
6
Parts Diagram
Parts Catalog
Helmet huosing - Undersaddle
by
CRANKSHAFT
EXHAUST
2
2
3
3
3
3
4
4
4
4
5
5
5
6
7
8
8
9
9
10
10
11
11
12
13
14
15
16
17
17
1A
1B
1A
1B
1A
Pot d'échappement complet
1A0071435
£745,72 Unit Price incl. VAT
1A
Pot d'échappement complet
1A0053365
£1 089,64 Unit Price incl. VAT
1B
Pot d'échappement complet
1A0112745
Not Available
1B
Pot d'échappement complet
1A0112755
£834,40 Unit Price incl. VAT
2
Protection
1A007010
£68,40 Unit Price incl. VAT
2
Protection
1A006753
£68,40 Unit Price incl. VAT
3
Hex socket screw M5x10
651014
£1,27 Unit Price incl. VAT
4
Flat washer
827526
£0,17 Unit Price incl. VAT
5
Fairlead
487665
£1,94 Unit Price incl. VAT
6
screw M5x10
842908
Not Available
7
Washer 6,6x18x1,6
841821
£0,62 Unit Price incl. VAT
8
Fairlead
B013302
£9,58 Unit Price incl. VAT
9
Graphite bushing
1A003106
£25,67 Unit Price incl. VAT
10
Hose clamp
1A003118
Not Available
11
Collecteur d'échappement
1A004877
£136,09 Unit Price incl. VAT
12
Hex socket screw
845590
£1,61 Unit Price incl. VAT
13
Spring washer 16x8,2x2,2
834187
£1,04 Unit Price incl. VAT
14
Flat washer 19,3x8,2x2,5
848452
£0,96 Unit Price incl. VAT
15
Nut
436947
£1,14 Unit Price incl. VAT
16
Lamda sensor l. 325 mm
584344
£178,32 Unit Price incl. VAT
17
Protection
1A011291
£101,90 Unit Price incl. VAT
17
Protection
1A011278
£101,90 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
