Engine displacement
150
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog
Cooling system
6

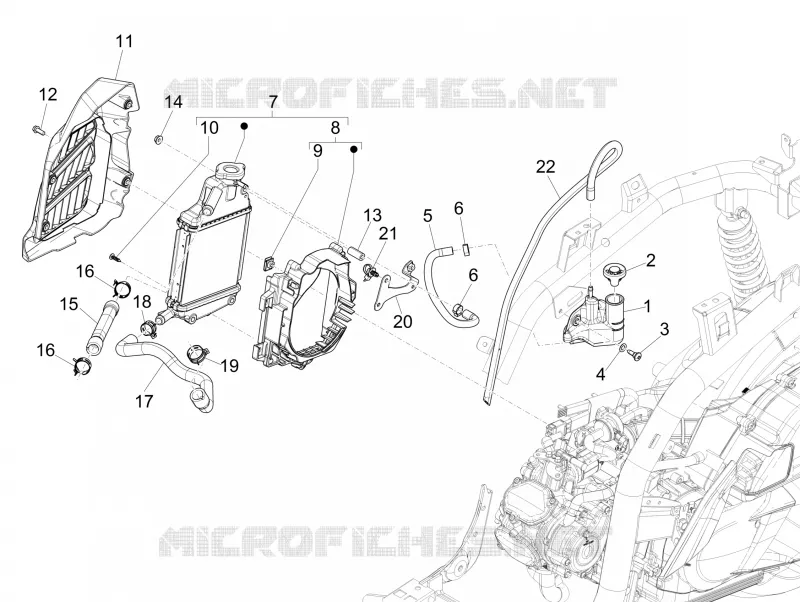

Parts Diagram
Parts Catalog
CYLINDER HEAD - VALVES
by
Cylinder head cover
Cooling system
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
1
Réservoir d'expansion
1B002267
£74,34 Unit Price incl. VAT
2
Bouchon
1B002766
£19,69 Unit Price incl. VAT
3
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
4
Spring washer
709047
£0,70 Unit Price incl. VAT
5
Cooling tube L=280
CM278701
£13,70 Unit Price incl. VAT
6
Hose clamp
CM001901
£1,76 Unit Price incl. VAT
7
Water cooler
1A006161
Not Available
7
Water cooler
1A008047
Not Available
8
Air duct
1A005671
Not Available
9
Spring plate
1A003988
£1,73 Unit Price incl. VAT
10
Self tapping screw L=20 mm
267958
£0,76 Unit Price incl. VAT
11
Protection du radiateur
1A006626
£24,36 Unit Price incl. VAT
12
Screw w/ flange M6x16
1A006359
£2,66 Unit Price incl. VAT
13
Spacer
1A001859
£1,78 Unit Price incl. VAT
14
Flanged nut
874558
£2,40 Unit Price incl. VAT
15
Water cooler-head tube
1A006075
£13,97 Unit Price incl. VAT
16
Hose clamp
CM226910
£3,41 Unit Price incl. VAT
17
Water cooler-pump tube
1A006076
£21,61 Unit Price incl. VAT
18
Spring clamp 22/12
CM226903
£3,48 Unit Price incl. VAT
19
Hose clamp
CM226911
£3,52 Unit Price incl. VAT
20
Rod
1A006358
£5,94 Unit Price incl. VAT
21
Wiring clip
1D001143
£1,24 Unit Price incl. VAT
22
Fuel breather pipe
CM001433
£10,79 Unit Price incl. VAT
