Engine displacement
150
2
Model
MEDLEY
3
Year
2017
4
Trim
Medley 4T ie ABS
5
Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
CRANKSHAFT
by
Rocking levers support unit
Swinging arm
1
2
2
3
3
4
5
6
6
7
7
8
9
10
10
10
11
11
11
12
13
14
15
15
15
15
16
16
17
18
18
19
1
Bras oscillant côté cadre complet
1C001890
£42,89 Unit Price incl. VAT
2
Silent-block
486081
£9,73 Unit Price incl. VAT
3
Gasket
006721
Not Available
4
Entretoise
CM272202
£55,64 Unit Price incl. VAT
5
Bras oscillant côté moteur complet
1C001880
£306,07 Unit Price incl. VAT
6
Silent-block
486081
£9,73 Unit Price incl. VAT
7
Gasket
006721
Not Available
8
Entretoise
CM272201
£8,46 Unit Price incl. VAT
9
Hex screw
667441
£13,12 Unit Price incl. VAT
10
Flat washer
178790
£1,64 Unit Price incl. VAT
11
Self locking nut M10
002440
Not Available
12
Hex screw M10x245
563977
£15,49 Unit Price incl. VAT
13
screw
597081
£13,28 Unit Price incl. VAT
14
Patte support silentbloc
1C001888
£217,78 Unit Price incl. VAT
15
Silent-block
668514
Not Available
15
Silent block
1C002624
£13,08 Unit Price incl. VAT
16
Circlip
1C002625
£0,95 Unit Price incl. VAT
16
Circlip
006416
Not Available
17
Hex screw
1C001844
£1,86 Unit Price incl. VAT
18
Plain washer 8,2x20x2,5
013861
Not Available
19
Low self-locking nut
709052
£1,13 Unit Price incl. VAT

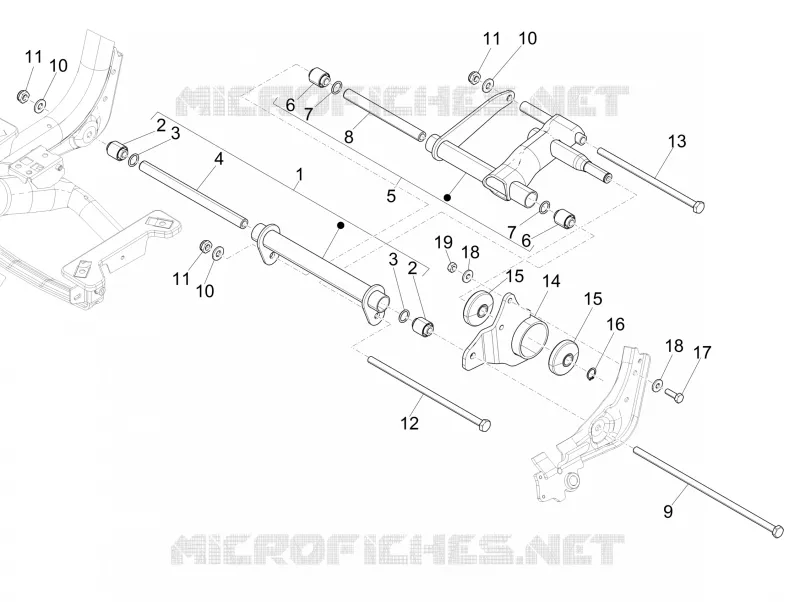

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
