Engine displacement
300
2
Model
MP3
3
Year
2013
4
Trim
MP3 4T 4V ie ERL Ibrido
5
Parts Catalog
Central cover - Footrests
6
Parts Diagram
Parts Catalog
Fuel tank
by
Front shield
Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
1
Complete central cover
65677800DG
Not Available
2
Fuel flap
65677900DG
Not Available
3
Spring plate
CM017410
£0,71 Unit Price incl. VAT
4
Self tapping screw
297498
£0,60 Unit Price incl. VAT
5
Maintenance
620491
£3,46 Unit Price incl. VAT
6
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
7
Cam lever
576626
£2,20 Unit Price incl. VAT
8
Spring
575604
£2,70 Unit Price incl. VAT
9
Spring
621507
£7,58 Unit Price incl. VAT
10
Flap retainer plate
624465
£7,96 Unit Price incl. VAT
11
Knurled bushing
830056
£1,27 Unit Price incl. VAT
12
Lh mat
623186
£47,82 Unit Price incl. VAT
13
Rh mat
623185
£45,55 Unit Price incl. VAT
14
Left fuse access flap
624458
£42,88 Unit Price incl. VAT
14
Left fuse access flap
62445800EM
Not Available
15
Right fuse access flap
62445900EM
Not Available
16
screw
015728
Not Available
17
Right central cover
62444500EM
Not Available
18
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
19
Spring plate
230359
£0,95 Unit Price incl. VAT
20
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
21
Self tapping screw
297498
£0,60 Unit Price incl. VAT
22
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
23
Spring plate
CM017410
£0,71 Unit Price incl. VAT
24
RH footrest
65677200DG
Not Available
25
LH footrest
65677300DG
£90,73 Unit Price incl. VAT
26
Left central cover
62444400EM
£82,19 Unit Price incl. VAT
27
Left spark plug inspection cover
65677100DG
Not Available
28
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
29
Washer
297029
£1,27 Unit Price incl. VAT
30
Spring plate
CM017410
£0,71 Unit Price incl. VAT
31
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
32
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
33
Screw metrica
CM179303
£1,27 Unit Price incl. VAT
34
Spring plate M6
254485
£1,64 Unit Price incl. VAT
35
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
36
Spring plate
CM017410
£0,71 Unit Price incl. VAT
37
Right rising footrest
655843
£23,96 Unit Price incl. VAT
38
Self tapping screw M6x35
259708
£1,02 Unit Price incl. VAT
39
Spring plate M6
254485
£1,64 Unit Price incl. VAT
40
Screw m6x55
259988
Not Available
41
Spacer
655844
£5,51 Unit Price incl. VAT
42
Spark plug insp. door SX
653287000C
£16,45 Unit Price incl. VAT

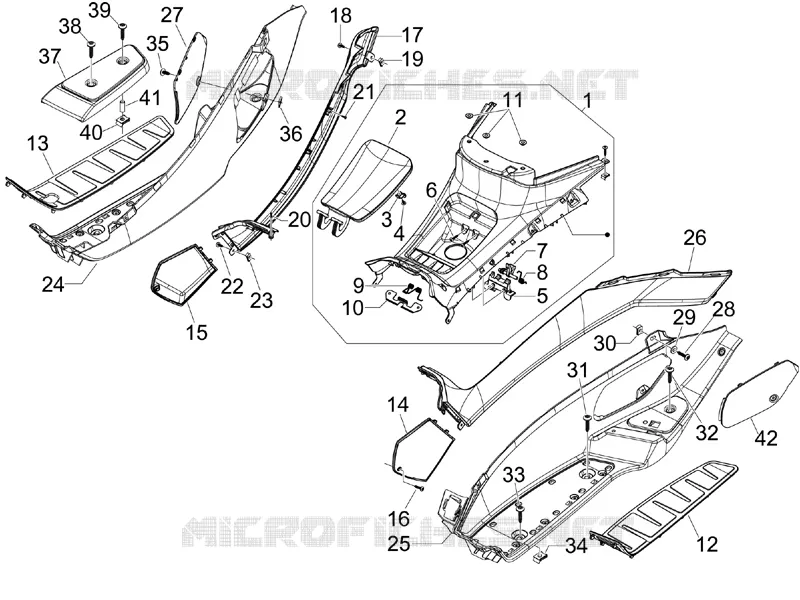

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
