1
Engine displacement
300
2
Model
MP3
3
Year
2014
4
Trim
MP3 YOUrban LT ERL
5
Parts Catalog

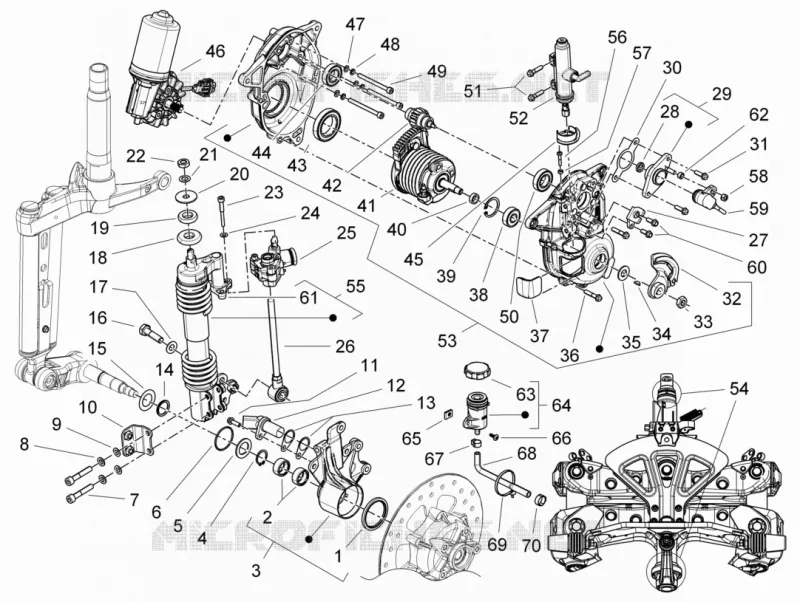

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Driven pulley
by
Remote control switches - Battery - Horn
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
1
Ring
177494
£4,73 Unit Price incl. VAT
2
Drawn cap
177436
Not Available
3
Pin and shock absorber support SX
6018835
£203,93 Unit Price incl. VAT
3
Pin and shock absorber support DX
6018905
£203,93 Unit Price incl. VAT
4
Circlip
006422
Not Available
5
Washer
177414
£1,62 Unit Price incl. VAT
6
O-ring
177408
£1,33 Unit Price incl. VAT
7
Hex socket screw
826298
£1,20 Unit Price incl. VAT
8
Flat washer 15x8,4x1,5
003058
Not Available
9
Spring washer
709047
£0,70 Unit Price incl. VAT
10
Bracket with U.P.
649259
£19,12 Unit Price incl. VAT
11
Hex screw M6x20
018639
Not Available
12
Wheel speed sensor
639366
£66,12 Unit Price incl. VAT
13
Spacer for timing sensor
646760
Not Available
14
Ring
177521
£1,62 Unit Price incl. VAT
15
Washer
177445
£1,62 Unit Price incl. VAT
16
Complete pin
649683
£48,00 Unit Price incl. VAT
17
Washer
709646
Not Available
18
Pad
174874
£3,66 Unit Price incl. VAT
19
Pad
174085
£2,87 Unit Price incl. VAT
20
Washer
174088
£1,62 Unit Price incl. VAT
21
Washer
012535
Not Available
22
Nut
021210
Not Available
23
screw
649392
£3,42 Unit Price incl. VAT
24
Spring washer 12x6,4x0,5
006976
Not Available
25
Complete right brake for shock absorber
601907
£118,14 Unit Price incl. VAT
25
Complete left brake for shock absorber
601727
£118,14 Unit Price incl. VAT
26
Complete pin
649683
£48,00 Unit Price incl. VAT
27
Bracket
667178
£9,71 Unit Price incl. VAT
28
Gasket ring
667171
£7,64 Unit Price incl. VAT
29
Support bracket sensor
667179
£91,62 Unit Price incl. VAT
30
Rotary sensor gasket
649367
£1,33 Unit Price incl. VAT
31
Hex screw M6x20
018639
Not Available
32
Brake control lever with U.P.
665866
£43,56 Unit Price incl. VAT
33
Nut
020210
Not Available
34
Transmission key
000267
Not Available
35
Spacer
646516
£7,64 Unit Price incl. VAT
36
Screw w/ flange M6x30
289731
Not Available
37
Cover
647190
£7,58 Unit Price incl. VAT
38
Radial ball bearing
843701
£10,62 Unit Price incl. VAT
39
Snap ring
006632
Not Available
40
Spacer
846834
£7,64 Unit Price incl. VAT
41
Complete spring unit
665815
£483,44 Unit Price incl. VAT
42
Pinion rod
667172
£144,05 Unit Price incl. VAT
43
Radial ball bearing
846977
£38,74 Unit Price incl. VAT
44
Bearing
825232
Not Available
45
Gasket
648800
£11,41 Unit Price incl. VAT
46
Motor
666379
£410,90 Unit Price incl. VAT
47
Spring washer 6,4x11x0,5
006966
Not Available
48
Washer
013955
Not Available
49
Hex socket screw
598775
£4,08 Unit Price incl. VAT
50
Bearing
825232
Not Available
51
Screw w/ flange M6x25
414837
Not Available
52
Brake pump, assy
666407
£148,19 Unit Price incl. VAT
53
Antirolling mechanical device
667183
Not Available
54
Central headstock bearing unit
6670825
Not Available
55
Complete front right shock absorber
601911
Not Available
55
Ammortizzatore ant. compl. Sx
601910
Not Available
56
screw M4x12
015650
Not Available
57
Nut M4
020004
Not Available
58
Self locking nut M6
195482
£1,27 Unit Price incl. VAT
59
Rotary sensor
642555
Not Available
60
Screw w/ flange M6x16
874555
£2,08 Unit Price incl. VAT
61
Right top cap
666584
Not Available
61
Left top cap
666894
Not Available
62
Spacer
667159
£4,69 Unit Price incl. VAT
63
Cover
498431
£25,02 Unit Price incl. VAT
64
Brake oil tank
274598
£66,44 Unit Price incl. VAT
65
Spring plate
CM017409
£1,27 Unit Price incl. VAT
66
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
67
Hose clamp
CM001901
£1,76 Unit Price incl. VAT
68
Antirolling device oil tube
666527
£25,76 Unit Price incl. VAT
69
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
70
Hose clamp
CM001913
£1,69 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
