Engine displacement
125
2
Model
FLY
3
Year
2013
4
Trim
Fly 4T/3V ie
5
Parts Catalog
Rear cover - Splash guard
6

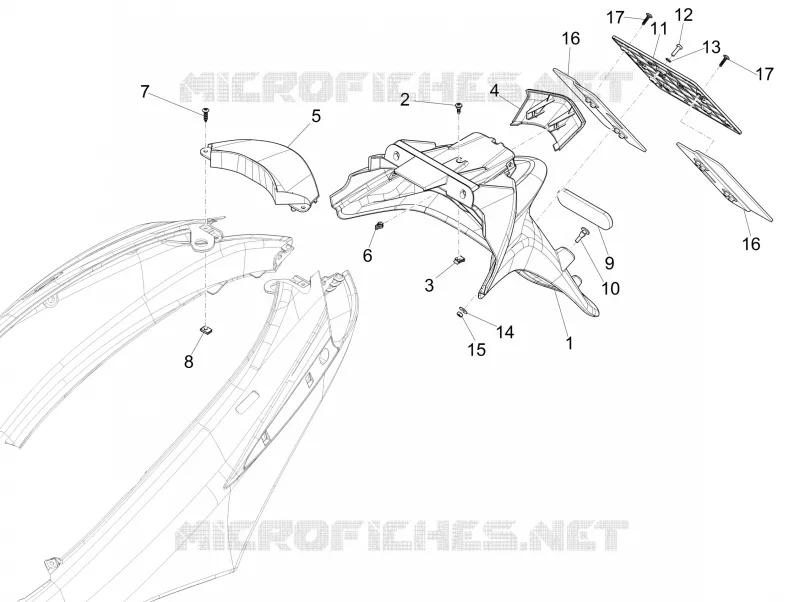

Parts Diagram
Parts Catalog
Silencer
by
Rocking levers support unit
Rear cover - Splash guard
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
1
Rear splash guard
675638000C
£54,78 Unit Price incl. VAT
2
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
3
Spring plate M6
254485
£1,64 Unit Price incl. VAT
4
Lower side union
67368340R7
Not Available
4
Lower side union
67368300ND
£21,16 Unit Price incl. VAT
4
Lower side union
673683
£22,09 Unit Price incl. VAT
4
Lower side union
67368300BT
£21,01 Unit Price incl. VAT
4
Lower side union
67368300DE
£21,16 Unit Price incl. VAT
4
Lower side union
67368300ME
£21,01 Unit Price incl. VAT
5
Upper side union
67368440R7
£21,01 Unit Price incl. VAT
5
Upper side union
673684
£21,04 Unit Price incl. VAT
5
Upper side union
67368400DE
£21,01 Unit Price incl. VAT
5
Upper side union
67368400ME
£21,01 Unit Price incl. VAT
5
Upper side union
67368400ND
£21,01 Unit Price incl. VAT
5
Upper side union
67368400BT
Not Available
6
Gripper clip
D9004468091
£4,58 Unit Price incl. VAT
7
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
8
Spring plate
CM017410
£0,71 Unit Price incl. VAT
9
Rear retroreflector
58233R
Not Available
10
Pad
672244
£2,38 Unit Price incl. VAT
11
Number plate holder
641524
£6,35 Unit Price incl. VAT
12
Screw M4x12
015996
Not Available
13
Washer
013769
Not Available
14
Flat washer 4,2x7,6x0,9
016404
Not Available
15
Nut M4
020104
Not Available
16
Number-plate extension
584877
£5,88 Unit Price incl. VAT
17
screw
664170
£2,51 Unit Price incl. VAT
