Parts Catalog
Rear cover - Splash guard
6

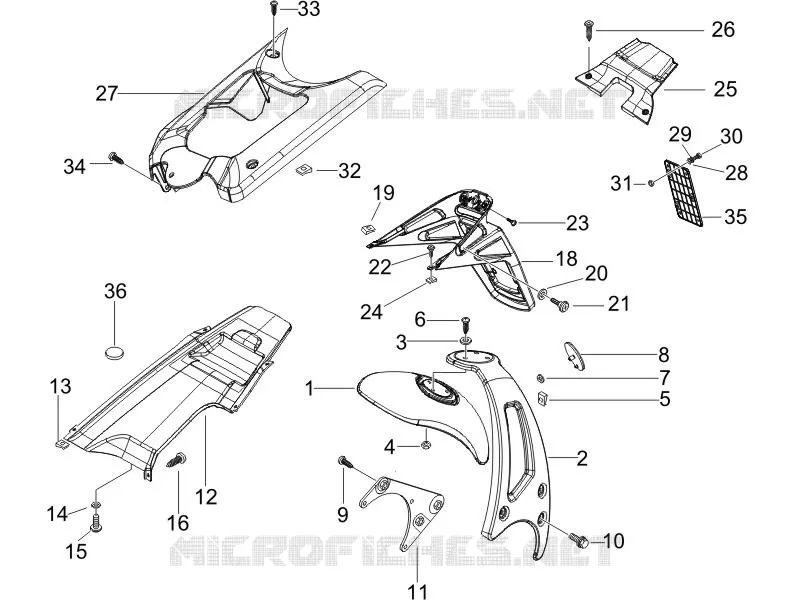

Parts Diagram
Parts Catalog
Crankcase cover - Crankcase cooling
by
Fuel tank
Rear cover - Splash guard
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
Rear splash guard
576588000C
£44,78 Unit Price incl. VAT
2
Bracket
959526000C
£77,71 Unit Price incl. VAT
3
Spring washer 6,4x11x0,5
006966
Not Available
4
Nut M6
020106
Not Available
5
Plate
180859
£1,02 Unit Price incl. VAT
6
Screw M6x16
272836
£1,13 Unit Price incl. VAT
7
Spacer
479882
£1,16 Unit Price incl. VAT
8
Reflector
582922
£10,44 Unit Price incl. VAT
9
screw M6x35
414838
£1,27 Unit Price incl. VAT
10
Screw w/ flange
959358
Not Available
11
plate
959527
£18,26 Unit Price incl. VAT
12
panel
959335000G
£54,26 Unit Price incl. VAT
13
Spring plate
CM017410
£0,71 Unit Price incl. VAT
14
Washer 4,5x12x1
016670
Not Available
15
screw M4x14
018591
Not Available
16
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
18
plate holder
959334000G
£34,82 Unit Price incl. VAT
19
Spring plate
CM017410
£0,71 Unit Price incl. VAT
20
Washer 4,5x12x1
016670
Not Available
21
screw M4x14
018591
Not Available
22
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
23
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
24
Scheibe
959263
£1,52 Unit Price incl. VAT
25
Fairing closure
959439
£54,17 Unit Price incl. VAT
25
FAIRINGS CLOSING UNION
9594394087
Not Available
25
FAIRINGS CLOSING UNION
9594390087
£75,11 Unit Price incl. VAT
26
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
27
engine cover
959521000G
Not Available
28
Flat washer 4,2x12x1
013763
Not Available
29
Flat washer 4,2x7,6x0,9
016404
Not Available
30
screw M4x14
018591
Not Available
31
Nut M4
020104
Not Available
32
Spring plate
CM017410
£0,71 Unit Price incl. VAT
33
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
34
Screw
959583
Not Available
35
Number plate holder (Plastica 121x141)
638833
£6,42 Unit Price incl. VAT
35
Number plate holder (Lamiera)
580124
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
