1
Engine displacement
50
2
Model
NRG
3
Year
2005
4
Trim
NRG Power Pure Jet
5
Parts Catalog

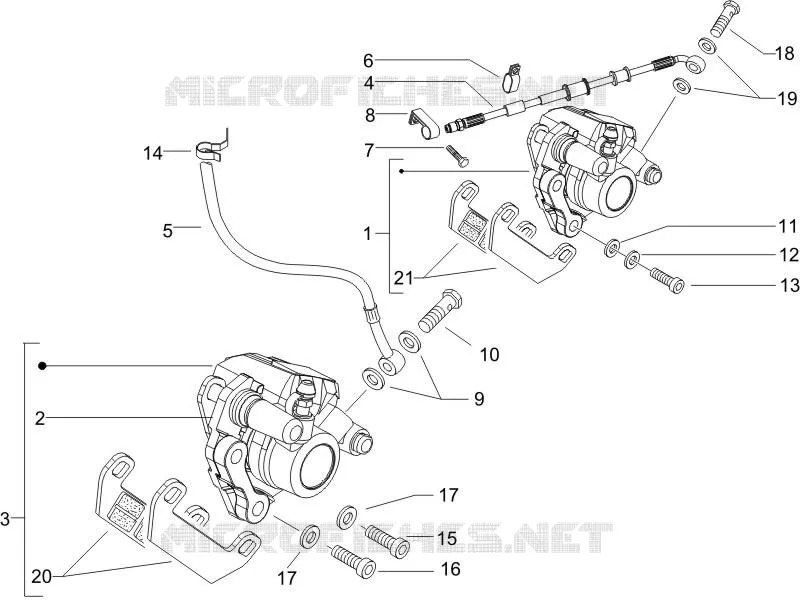

Brakes pipes - Calipers
6
Parts Diagram
Parts Catalog
Handlebars coverages
by
Rear suspension - Shock absorber/s
Brakes pipes - Calipers
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
1
Brake calliper assembly
CM076702
Not Available
2
Caliper fixing bracket
600735
£79,66 Unit Price incl. VAT
3
Brake caliper Heng Tong
600734
£101,06 Unit Price incl. VAT
4
Rear brake tube
597752
£82,21 Unit Price incl. VAT
5
pipe
959371
Not Available
6
Hose clamp
216983
£2,35 Unit Price incl. VAT
7
screw M6x35
414838
£1,27 Unit Price incl. VAT
8
Hose clamp
564761
£1,43 Unit Price incl. VAT
9
Gasket
127927
£1,04 Unit Price incl. VAT
10
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
11
Flat washer 15x8,4x1,5
003058
Not Available
12
Spring washer 13,75x8,15x4,5
016408
Not Available
13
screw
598921
£1,06 Unit Price incl. VAT
14
Hose clamp
564629
£3,49 Unit Price incl. VAT
15
screw M8x30
015792
Not Available
16
screw
598921
£1,06 Unit Price incl. VAT
17
Spring washer
709047
£0,70 Unit Price incl. VAT
18
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
19
Gasket
127927
£1,04 Unit Price incl. VAT
20
Brake pads kit (Heng Tong)
497417
Not Available
21
Brake pads kit
497452
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
