1
Engine displacement
50
2
Model
NRG
3
Year
2007
4
Trim
NRG Power Pure Jet
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Fuel tank
by
Wheel huosing - Mudguard
Rear wheel
1
2
3
4
5
6
7
9
10
11
12
13
14
15
1
REAR WHEEL (WANFENG)
9593820090
Not Available
1
Rear wheel
959382
Not Available
2
Tubeless tyre valve
270991
£6,00 Unit Price incl. VAT
3
Tyre 140/60-13" Sava
959573
£115,54 Unit Price incl. VAT
3
Rear tyre 140/60-13" Pirelli
959560
Not Available
3
Tyre 140/60-13" Vee-rubber
959561
Not Available
4
screw M8x30
015792
Not Available
5
Spring washer
709047
£0,70 Unit Price incl. VAT
6
Rear wheel hub
56111R
£235,62 Unit Price incl. VAT
7
Brake disc
564520
Not Available
7
Brake disc
56396R
£51,50 Unit Price incl. VAT
9
Spring washer 6,4x11x0,5
006966
Not Available
10
Hex socket screw M6x12
274369
£0,62 Unit Price incl. VAT
10
Hex socket screw M6x20
271147
Not Available
11
Split pin
012789
Not Available
12
Ring
159347
£2,53 Unit Price incl. VAT
13
Nut hold cap
194423
Not Available
14
Cover
562129
£5,35 Unit Price incl. VAT
15
Nut M16x13
563728
£2,48 Unit Price incl. VAT

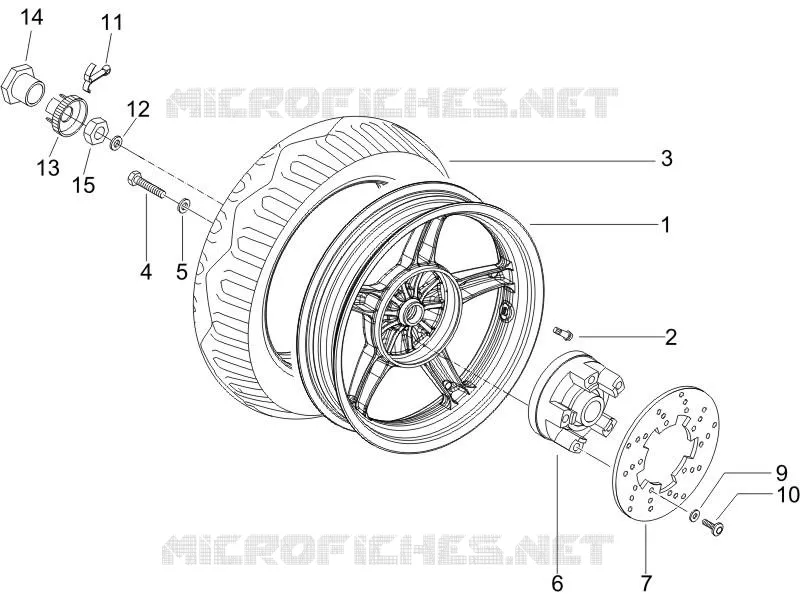

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
