1
Engine displacement
50
2
Model
NRG
3
Year
2011
4
Trim
NRG Power Pure jet
5
Parts Catalog

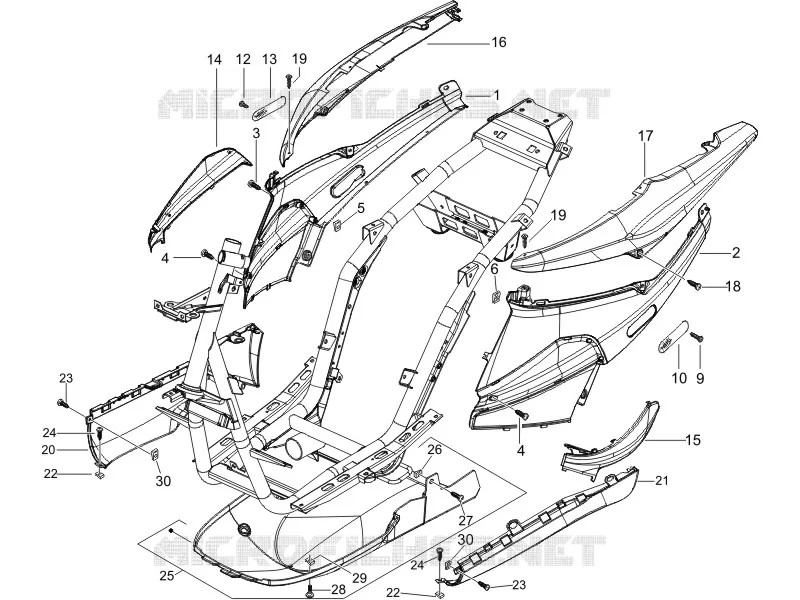

Side cover - Spoiler
6
Parts Diagram
Parts Catalog
Front glove-box - Knee-guard panel
by
Front headlamps - Turn signal lamps
Side cover - Spoiler
1
2
3
4
4
5
6
9
10
12
13
14
15
16
17
18
19
19
20
21
22
22
23
23
24
24
25
26
27
28
29
30
30
1
RH side panel
959339000G
Not Available
2
LH side panel
959337000G
Not Available
3
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
4
Screw M6x10
959614
£7,09 Unit Price incl. VAT
5
Spring plate
CM017410
£0,71 Unit Price incl. VAT
6
Spring plate M6
254485
£1,64 Unit Price incl. VAT
9
Self tapping screw
297498
£0,60 Unit Price incl. VAT
10
Lateral reflector
293556
Not Available
12
Self tapping screw
297498
£0,60 Unit Price incl. VAT
13
Lateral reflector
293556
Not Available
14
Lower side panel r.h.
9593430043
£14,88 Unit Price incl. VAT
15
Lower side panel l.h.
9593420043
£14,88 Unit Price incl. VAT
16
Right undertail section
95934100EZ
£144,04 Unit Price incl. VAT
16
Right undertail section
95934100AO
Not Available
16
Right undertail section
95934100BR
Not Available
16
Right undertail section
9593410090
£144,04 Unit Price incl. VAT
16
Right undertail section
959341
£113,92 Unit Price incl. VAT
17
left semi tail fairing
95934000BR
Not Available
17
left semi tail fairing
95934000EZ
Not Available
17
left semi tail fairing
9593404090
Not Available
17
left semi tail fairing
959340
£113,92 Unit Price incl. VAT
17
left semi tail fairing
95934000AO
Not Available
18
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
19
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
20
Right spoiler Nero - Black
652887
£102,20 Unit Price incl. VAT
20
Right spoiler
65288700BR
£114,53 Unit Price incl. VAT
21
Left spoiler
65288600BR
Not Available
21
Left spoiler Nero - Black
652886
£102,20 Unit Price incl. VAT
22
Spring plate M6
254485
£1,64 Unit Price incl. VAT
23
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
24
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
25
Lower spoiler closure
959579
£47,35 Unit Price incl. VAT
26
Spring plate M6
254485
£1,64 Unit Price incl. VAT
27
Screw M6x16
272836
£1,13 Unit Price incl. VAT
28
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
29
Scheibe
959359
£0,78 Unit Price incl. VAT
30
Spring plate
CM017410
£0,71 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
