1
Engine displacement
50
2
Model
TYPHOON
3
Year
2009
4
Trim
Typhoon 2T E2
5
Parts Catalog

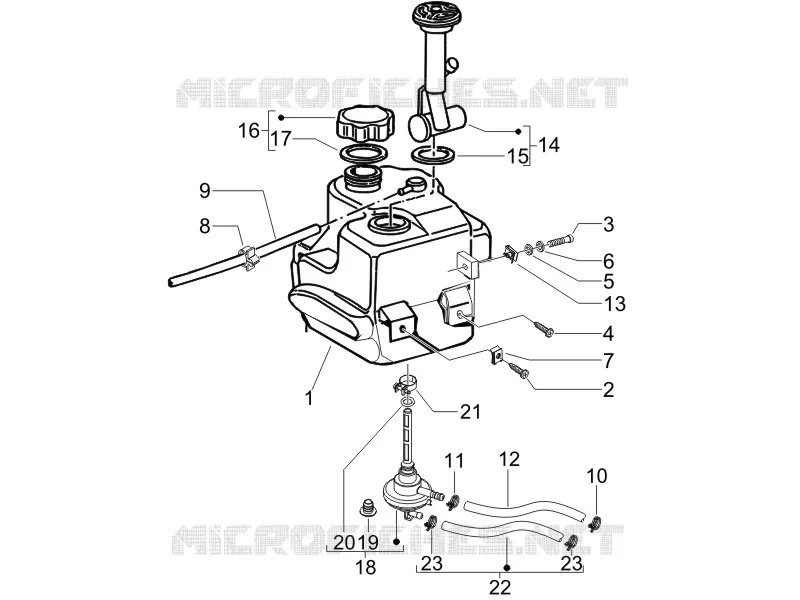

Fuel tank
6
Parts Diagram
Parts Catalog
Locks
by
Oil tank
Fuel tank
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
1
Tank
574934
Not Available
2
Screw m16x16
015558
Not Available
3
screw
257403
Not Available
4
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
5
Flat washer 16x6,5x1,5
013880
Not Available
6
Spring washer 6,4x11,8x1
016406
Not Available
7
Spring plate M6
254485
£1,64 Unit Price incl. VAT
8
Spring
CM013201
£0,76 Unit Price incl. VAT
9
pipe
CM001209
Not Available
10
Hose clamp
CM002901
£0,62 Unit Price incl. VAT
11
Hose clamp
CM002905
£0,18 Unit Price incl. VAT
12
Fuel pipe
CM004126
Not Available
13
Spring plate M6
254485
£1,64 Unit Price incl. VAT
14
Level gauge
257303
Not Available
15
Gasket
258161
Not Available
16
Plug
259832
£8,71 Unit Price incl. VAT
17
Tank cover gasket
258160
£4,51 Unit Price incl. VAT
18
Cock
575331
£22,92 Unit Price incl. VAT
19
Tank cap
259831
Not Available
20
Gasket
196868
£3,14 Unit Price incl. VAT
21
Hose clamp
577557
Not Available
22
Hose clamp
CM001912
Not Available
23
Complete vacuum pipe
653234
£27,31 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
