1
Engine displacement
350
2
Model
X10
3
Year
2012
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Front shield
6
Parts Diagram
Parts Catalog
Silencer
by
Rear suspension - Shock absorber/s

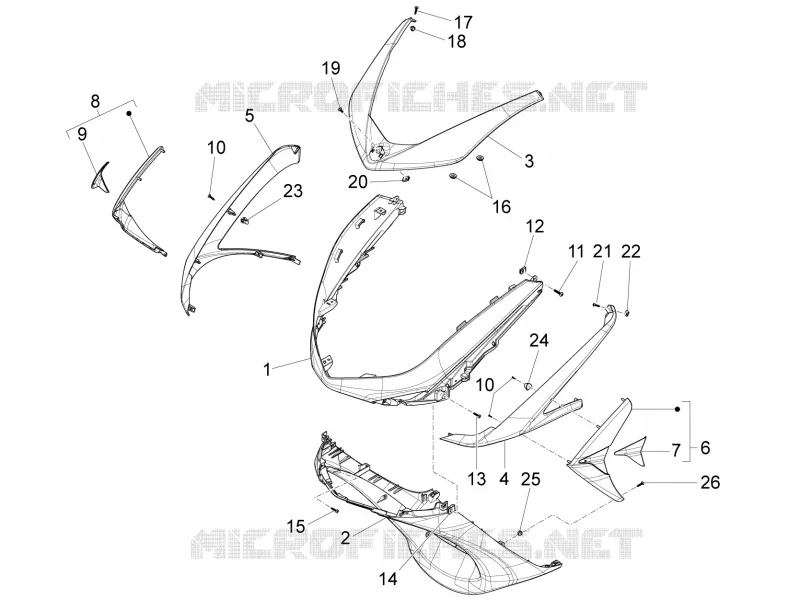

Front shield
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Front shield
67342200MC
Not Available
1
Front shield
67342200BT
Not Available
1
Front shield
67342200NN
Not Available
1
Front shield
67342200DE
Not Available
1
Front shield
67342200DO
£310,52 Unit Price incl. VAT
1
Front shield
67342200XN2
Not Available
1
Front shield
673422
£197,35 Unit Price incl. VAT
1
Front shield
67342200M8
Not Available
1
Front shield
67342200EV
Not Available
2
Lower shield
67467900M8
Not Available
2
Lower shield
67467900DE
Not Available
2
Lower shield
67467900BT
Not Available
2
Lower shield
674679
£308,36 Unit Price incl. VAT
2
Lower shield
67467900XN2
£249,84 Unit Price incl. VAT
2
Lower shield
67467900EV
Not Available
2
Lower shield
67467900DO
£249,84 Unit Price incl. VAT
2
Lower shield
67467900MC
Not Available
2
Lower shield
67467900NN
Not Available
3
Shield upper cover
67342400XN2
Not Available
3
Shield upper cover
673424
£151,57 Unit Price incl. VAT
3
Shield upper cover
67342400NN
Not Available
3
Shield upper cover
67342400BT
Not Available
3
Shield upper cover
67342400DO
£179,70 Unit Price incl. VAT
3
Shield upper cover
67342400M8
Not Available
3
Shield upper cover
67342400DE
£179,70 Unit Price incl. VAT
3
Shield upper cover
67342400EV
Not Available
3
Shield upper cover
67342400MC
Not Available
4
Left front moulding
673435
£229,43 Unit Price incl. VAT
5
Right front moulding
673436
£229,43 Unit Price incl. VAT
6
Left deflector
674916
Not Available
7
Sticker LH
674918
Not Available
8
Right deflector
674919
Not Available
9
Sticker RH
674921
£6,79 Unit Price incl. VAT
10
Self tapping screw
297498
£0,60 Unit Price incl. VAT
11
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
12
Spring plate
CM017410
£0,71 Unit Price incl. VAT
13
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
14
Spring plate
CM017410
£0,71 Unit Price incl. VAT
15
Self tapping screw D4x16
CM180701
£0,52 Unit Price incl. VAT
16
Elastic drift
463195
Not Available
17
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
18
Expansion plug
157716
£0,16 Unit Price incl. VAT
19
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
20
Spring plate M6
254485
£1,64 Unit Price incl. VAT
21
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
22
Spring plate
CM017410
£0,71 Unit Price incl. VAT
23
Gripper clip
D9004468091
£4,58 Unit Price incl. VAT
24
Cap
675029
£1,27 Unit Price incl. VAT
25
Expansion plug
157716
£0,16 Unit Price incl. VAT
26
Self-tap screw
CM178604
£1,24 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
