Parts Catalog
Brakes pipes - Calipers (ABS)
6

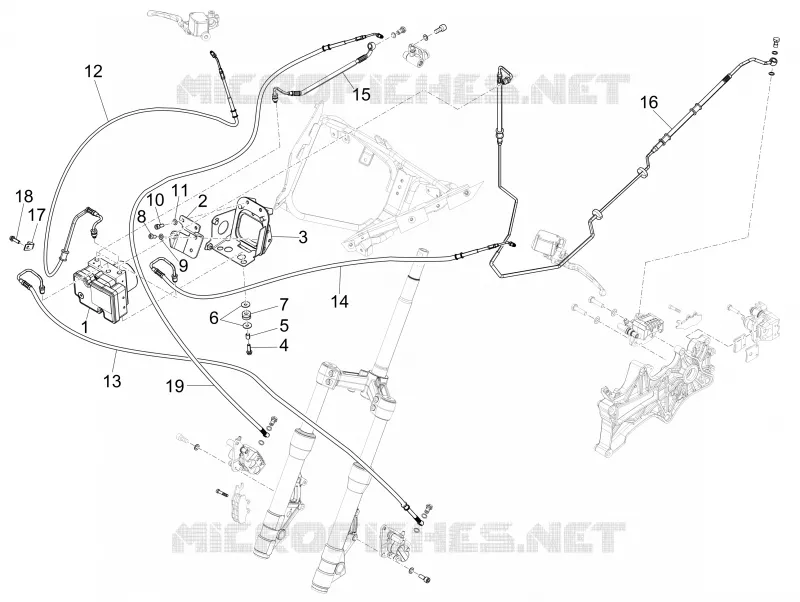

Parts Diagram
Parts Catalog
Brakes pipes - Calipers
by
Cooling system
Brakes pipes - Calipers (ABS)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
ABS electro-hydraulic control unit
667981
Not Available
1
ABS electro-hydraulic control unit
667999
Not Available
2
Support clamp
668264
£20,51 Unit Price incl. VAT
3
ABS SUPPORT BRACKET WITH I.P.
668058
£56,48 Unit Price incl. VAT
4
Hex screw M6x20
018639
Not Available
5
Spacer
174969
£1,50 Unit Price incl. VAT
6
Washer
179575
£1,33 Unit Price incl. VAT
7
Pad
939278
£4,45 Unit Price incl. VAT
8
TBIC screw
877793
Not Available
8
Screw w/ flange M6x14
874554
£2,32 Unit Price incl. VAT
9
Spring washer 6,4x11x0,5
006966
Not Available
10
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
11
Spring washer 12x6,4x0,5
006976
Not Available
12
ABS unit right brake pump pipe
668215
£68,62 Unit Price incl. VAT
13
ABS unit brake pipe - front brake pin
668216
£69,65 Unit Price incl. VAT
14
ABS unit - left brake pump pipe
668214
£68,62 Unit Price incl. VAT
15
ABS brake pipe - Valve
668217
£67,70 Unit Price incl. VAT
16
Front brake tube
668690
£195,08 Unit Price incl. VAT
17
Hose clamp
598795
£2,14 Unit Price incl. VAT
18
Screw w/ flange M6x14
874554
£2,32 Unit Price incl. VAT
19
Brake pipe (valve-caliper)
668231
£60,73 Unit Price incl. VAT
