1
Engine displacement
125
2
Model
X7
3
Year
2009
4
Trim
X7 ie Euro 3
5
Parts Catalog

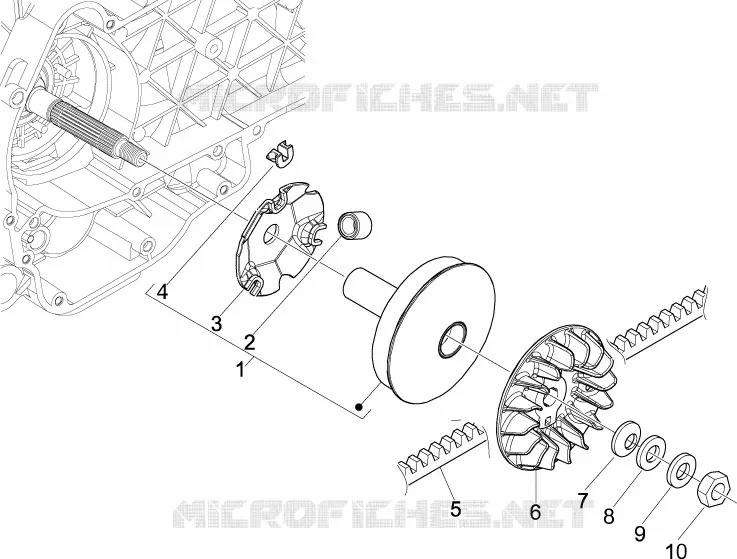

Driving pulley
6
Parts Diagram
Parts Catalog
Reduction unit
by
Frame/bodywork
Driving pulley
1
2
3
4
5
6
7
8
9
10
1
Half-pulley assy., driving
CM144403
£95,54 Unit Price incl. VAT
2
Pin roller weight g.7,4
CM103804
Not Available
3
Roller contrast
842204
£14,02 Unit Price incl. VAT
4
Sliding block
434855
Not Available
5
(Mitsuboshi) V-belt
841213
£71,54 Unit Price incl. VAT
6
Fixed driving half pulley
876921
£27,54 Unit Price incl. VAT
7
Belleville spring 0,5x35x17
841379
Not Available
8
Flat washer 12.1x36x2
840533
£2,30 Unit Price incl. VAT
9
Plain washer
831363
£2,08 Unit Price incl. VAT
10
Nut M12x1.25
486324
£1,04 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
