Parts Catalog
Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Front wheel
by
Windshield - Glass
Rear suspension - Shock absorber/s
1
2
3
3
4
4
5
6
6
7
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Rear shock absorber cpl.
56235R
Not Available
2
plate
599890
Not Available
3
Flat washer
178790
£1,64 Unit Price incl. VAT
4
Screw w/ flange
598838
£2,17 Unit Price incl. VAT
5
LH clamp
598938
£18,61 Unit Price incl. VAT
6
Hex screw M10x45
015578
Not Available
7
Nut M8
020008
Not Available
8
screw
436787
£0,29 Unit Price incl. VAT
9
Washer
709646
Not Available
10
Hex socket screw M8x50
844483
£0,65 Unit Price incl. VAT
11
Spacer L=183 mm
CM067801
£17,98 Unit Price incl. VAT
12
Spacer L=228 mm
CM067803
£16,27 Unit Price incl. VAT
13
Circlip
006416
Not Available
14
Self locking nut M10
231370
£1,13 Unit Price incl. VAT
15
Self locking nut M10
232108
Not Available
16
Hex screw M10x202
271807
£10,52 Unit Price incl. VAT
17
Nut m22x2 h=8
564611
£4,70 Unit Price incl. VAT
18
Nut
564878
£1,06 Unit Price incl. VAT
19
Hex socket screw
597080
£26,93 Unit Price incl. VAT
20
screw
597081
£13,28 Unit Price incl. VAT
21
Spring
597490
£7,63 Unit Price incl. VAT
22
Threaded bush
597774
£30,86 Unit Price incl. VAT

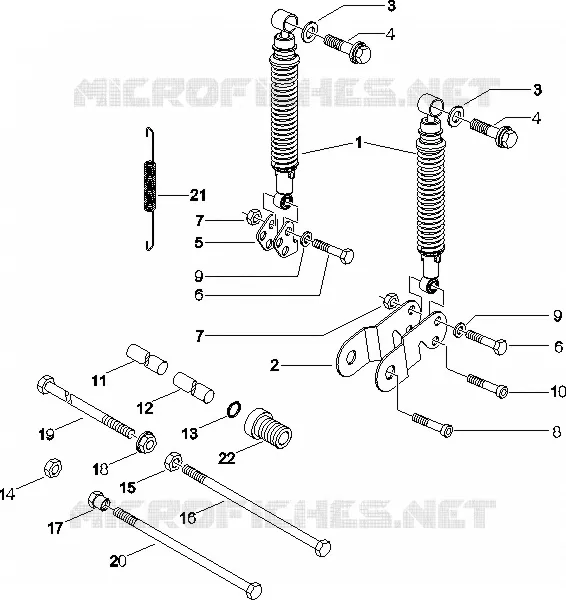

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
