1
Engine displacement
250
2
Model
X8
3
Year
2005
4
Trim
X8 ie
5
Parts Catalog

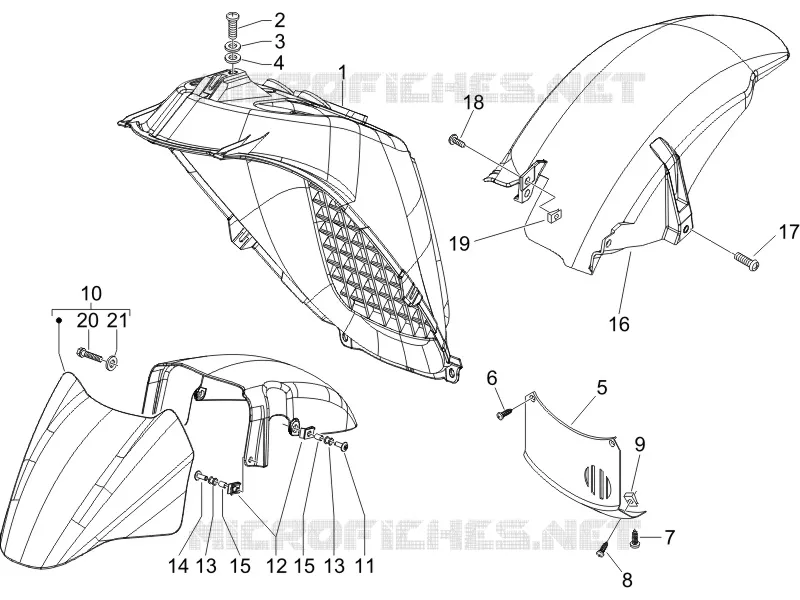

Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Helmet huosing - Undersaddle
Wheel huosing - Mudguard
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
15
16
17
18
19
20
21
1
Wheel compartment
623589000P
£76,69 Unit Price incl. VAT
2
Screw w/ flange M6x16
434541
Not Available
3
Flat washer 16x6,5x1,5
013880
Not Available
4
Spring washer 6,4x11,8x1
016406
Not Available
5
Wheel housing small cover
623669
£7,75 Unit Price incl. VAT
5
Wheel housing lower closing
624088000P
Not Available
6
Self tapping screw
297498
£0,60 Unit Price incl. VAT
7
Metric screw M6x20
259830
Not Available
8
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
9
Spring plate
CM017410
£0,71 Unit Price incl. VAT
10
FF MUDGUARD X8
64690350EB
Not Available
10
FF MUDGUARD X8
64690350ND
Not Available
10
FRONT FENDER ASSY
64690360ND
Not Available
10
FRONT FENDER ASSY
64690360EB
Not Available
10
FF MUDGUARD X8
64690350DE
Not Available
10
FF MUDGUARD X8
64690350F2
Not Available
10
FRONT FENDER ASSY
64690360DE
Not Available
11
Screw M6x16
272836
£1,13 Unit Price incl. VAT
12
Spring plate M6
254485
£1,64 Unit Price incl. VAT
13
Pad
217163
£0,91 Unit Price incl. VAT
14
Metric screw M6x20
259830
Not Available
15
Spacer
598288
£0,96 Unit Price incl. VAT
16
Rear mudguard
620902
£60,10 Unit Price incl. VAT
17
Self tapping screw M6x35
259708
£1,02 Unit Price incl. VAT
18
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
19
Spring plate M6
254485
£1,64 Unit Price incl. VAT
20
Screw w/ flange M6x25
414837
Not Available
21
Flat washer 16x6,5x1,5
013880
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
