Parts Catalog
Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
Driven pulley
by
Crankcase cover - Crankcase cooling
Wheel huosing - Mudguard
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
17
18
18
19
19
19
19
20
20
20
20
21
21
22
23
24
25
26
1
Wheel compartment
623589000P
£76,69 Unit Price incl. VAT
1
Wheel compartment
623589000C
£60,94 Unit Price incl. VAT
2
Screw w/ flange M6x16
B016777
£1,27 Unit Price incl. VAT
3
Spring washer 6,4x11,8x1
016406
Not Available
4
Flat washer 16x6,5x1,5
013880
Not Available
5
Front mudguard
65392200EU
£82,38 Unit Price incl. VAT
5
Front mudguard
65392200DE
Not Available
5
Front mudguard
65392200ND
Not Available
5
Front mudguard
65392200ES
Not Available
5
Front mudguard
65392200DF
Not Available
5
Front mudguard
65392200EV
Not Available
5
Front mudguard
6539220090
Not Available
5
Front mudguard
653922
£132,02 Unit Price incl. VAT
5
Front mudguard
65392200XN2
Not Available
5
Front mudguard
65392200BR
£178,10 Unit Price incl. VAT
6
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
7
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
8
Spring plate
CM017410
£0,71 Unit Price incl. VAT
9
Wheel housing lower closing
624088000C
£46,94 Unit Price incl. VAT
9
Wheel housing lower closing
624088000P
Not Available
10
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
11
Spring plate
CM017410
£0,71 Unit Price incl. VAT
12
Metric screw M6x20
259830
Not Available
13
Front mudguard
647017
£172,10 Unit Price incl. VAT
13
Front mudguard
64701700BR
Not Available
13
Spring plate M6
254485
£1,64 Unit Price incl. VAT
13
Front mudguard
64701700NI
£226,57 Unit Price incl. VAT
14
Rear part front mudguard
647018000C
£66,64 Unit Price incl. VAT
15
Screw M6x16
272836
£1,13 Unit Price incl. VAT
16
Spring plate
CM017410
£0,71 Unit Price incl. VAT
17
Screw w/ flange M6x25
414837
Not Available
18
Flat washer 16x6,5x1,5
013880
Not Available
19
Spacer
598288
£0,96 Unit Price incl. VAT
20
Pad
217163
£0,91 Unit Price incl. VAT
21
Metric screw M6x20
259830
Not Available
22
Front mudguard
653933
£42,83 Unit Price incl. VAT
23
Rear mudguard
620902
£60,10 Unit Price incl. VAT
24
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
25
Metric screw M6x20
259830
Not Available
26
Washer Ø5,3xØ10x0,5
006975
Not Available

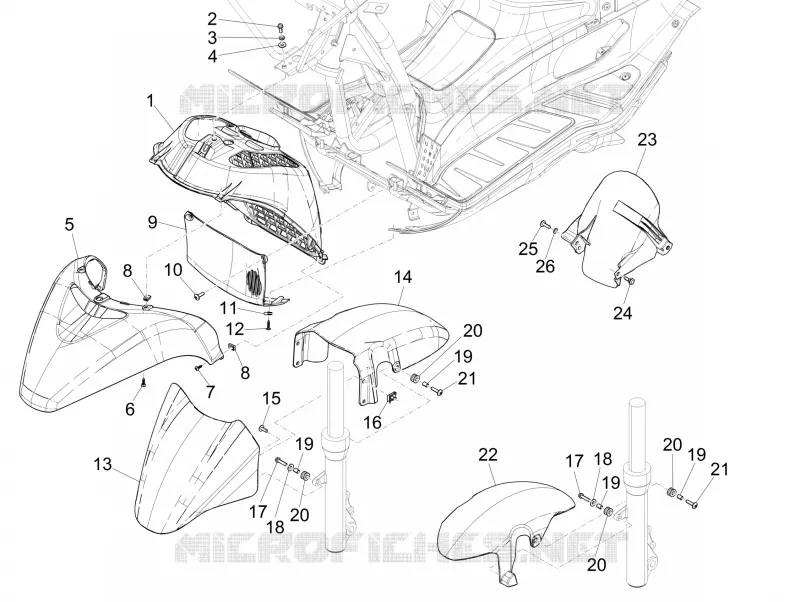

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
