Engine displacement
125
2
Model
X-EVO
3
Year
2012
4
Trim
X Evo Euro 3
5
Parts Catalog
Front shield
6
Parts Diagram
Parts Catalog
Crankcase
by
Transmissions
Front shield
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
shield
65434800EU
£413,96 Unit Price incl. VAT
1
shield
654348
£418,57 Unit Price incl. VAT
1
shield
65434800XN2
Not Available
1
shield
65434800NI
£547,06 Unit Price incl. VAT
1
shield
65434800DE
£547,06 Unit Price incl. VAT
1
shield
6543480090
Not Available
1
shield
65434800DF
Not Available
1
shield
65434800ND
Not Available
1
shield
65434800EV
Not Available
1
shield
65434800ES
Not Available
1
shield
65434800BR
Not Available
2
Spring plate
CM017409
£1,27 Unit Price incl. VAT
3
Spring plate
CM017410
£0,71 Unit Price incl. VAT
4
Screw m6x30
271891
£1,28 Unit Price incl. VAT
5
Screw M6x16
272836
£1,13 Unit Price incl. VAT
6
Washer
297029
£1,27 Unit Price incl. VAT
7
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
8
Spring plate
CM017410
£0,71 Unit Price incl. VAT
9
Self-tap screw
576189
Not Available
9
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
10
Front rim
65625300ES
Not Available
10
Front rim
65625300NI
Not Available
10
Front rim
65392500ND
Not Available
10
Front rim
65625300XN2
Not Available
10
Front rim
65392500DE
Not Available
10
Front rim
65625300EV
Not Available
10
Front rim
653925
Not Available
10
Front rim
65625300DE
Not Available
10
Front rim
6539250090
Not Available
10
Front rim
656253
£174,55 Unit Price incl. VAT
10
Front rim
65625300EU
Not Available
10
Front rim
65392500XN2
Not Available
10
Front rim
65392500EV
£226,52 Unit Price incl. VAT
10
Front rim
65392500EU
Not Available
10
Front rim
65392500ES
Not Available
10
Front rim
65625300ND
Not Available
10
Front rim
65392500DF
Not Available
10
Front rim
65625300BR
Not Available
11
screw 3,5x16
015859
Not Available
11
Self tapping screw
297498
£0,60 Unit Price incl. VAT
12
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
13
Frame right front cowl
654371
£13,64 Unit Price incl. VAT
14
Frame left front cowl
654372
£13,64 Unit Price incl. VAT
15
Expansion plug
157716
£0,16 Unit Price incl. VAT

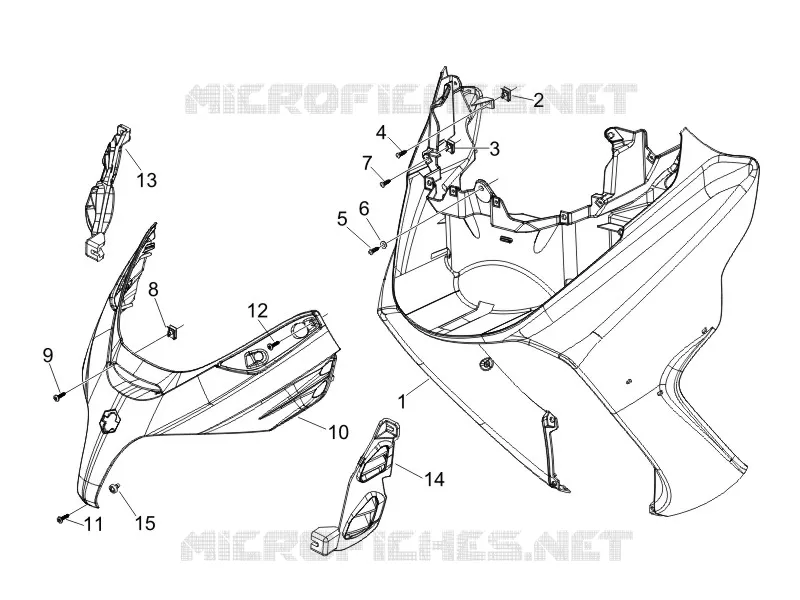

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
