1
Engine displacement
250
2
Model
X-EVO
3
Year
2017
4
Trim
X Evo Euro 3
5
Parts Catalog

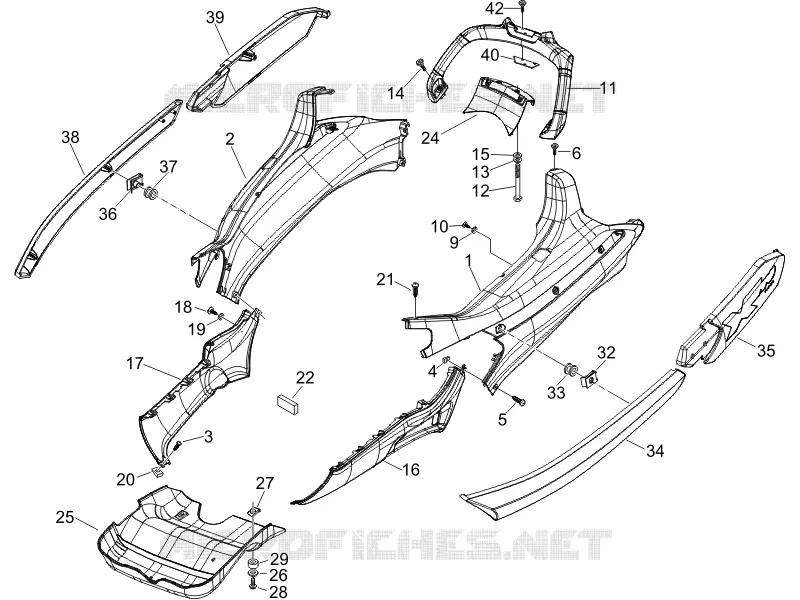

Side cover - Spoiler
6
Parts Diagram
Parts Catalog
Supply system
by
Front wheel
Side cover - Spoiler
1
2
3
4
5
6
9
10
11
12
13
14
15
16
17
18
19
20
21
22
24
25
26
27
28
29
32
33
34
35
36
37
38
39
40
42
1
Rear body side l.h.
62025100ND
Not Available
1
Rear body side l.h.
62025100ES
Not Available
1
Rear body side l.h.
62025100EU
£129,44 Unit Price incl. VAT
1
Rear body side l.h.
62025100EV
Not Available
1
Rear body side l.h.
62025100XN2
Not Available
1
Rear body side l.h.
62025100DE
Not Available
1
Rear body side l.h.
620251
£127,92 Unit Price incl. VAT
2
Rear body side r.h.
62025200EU
£129,44 Unit Price incl. VAT
2
Rear body side r.h.
62025200DE
Not Available
2
Rear body side r.h.
62025200XN2
Not Available
2
Rear body side r.h.
620252
£129,44 Unit Price incl. VAT
2
Rear body side r.h.
62025200ND
Not Available
2
Rear body side r.h.
62025200ES
£87,08 Unit Price incl. VAT
2
Rear body side r.h.
62025200EV
Not Available
3
Self-tap screw
576189
Not Available
4
Spring plate
CM017410
£0,71 Unit Price incl. VAT
5
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
6
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
9
Flat washer 4,2x12x1
013763
Not Available
10
Self tapping screw
297498
£0,60 Unit Price incl. VAT
11
Passenger handle
653926
£189,96 Unit Price incl. VAT
12
screw
030062
Not Available
13
Spring washer 6,4x11,8x1
016406
Not Available
14
Self tapping screw M6x35
259708
£1,02 Unit Price incl. VAT
15
Flat washer 16x6,5x1,5
013880
Not Available
16
Left spoiler
62024500ND
Not Available
16
Left spoiler
62024500XN2
£77,68 Unit Price incl. VAT
16
Left spoiler
620245
£132,19 Unit Price incl. VAT
16
Left spoiler
62024500DE
Not Available
16
Left spoiler
62024500ES
Not Available
16
Left spoiler
62024500EV
£77,68 Unit Price incl. VAT
17
Right spoiler
620246
Not Available
17
Right spoiler
62024600XN2
Not Available
17
Right spoiler
62024600DE
Not Available
17
Right spoiler
62024600EV
£78,20 Unit Price incl. VAT
17
Right spoiler
62024600ES
Not Available
17
Right spoiler
62024600ND
Not Available
18
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
19
Washer
013963
Not Available
20
Spring plate
CM017410
£0,71 Unit Price incl. VAT
21
Self-tap screw
576189
Not Available
22
Pad
621485
£3,65 Unit Price incl. VAT
24
Fairings upper cover
62030000ES
Not Available
24
Fairings upper cover
62030000DE
Not Available
24
Fairings upper cover
620300
£60,73 Unit Price incl. VAT
24
Fairings upper cover
62030000ND
£67,48 Unit Price incl. VAT
25
Lower spoiler closure
623635
Not Available
26
Washer 6,2x18x2
013950
Not Available
27
Spring plate M6
254485
£1,64 Unit Price incl. VAT
28
Metric screw M6x20
259830
Not Available
29
Spacer
624085
£1,24 Unit Price incl. VAT
32
Spring plate
230359
£0,95 Unit Price incl. VAT
33
Spacer
479882
£1,16 Unit Price incl. VAT
34
Front part left side protection
654350
£86,77 Unit Price incl. VAT
35
Rear part left side protection
654351
£31,10 Unit Price incl. VAT
36
Spring plate
230359
£0,95 Unit Price incl. VAT
37
Spacer
479882
£1,16 Unit Price incl. VAT
38
Front part right side protection
654352
£86,77 Unit Price incl. VAT
39
Rear part right side protection
654353
£31,10 Unit Price incl. VAT
40
Handle sub/frame lower plate
654212
£24,94 Unit Price incl. VAT
42
screw
255638
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
