1
Engine displacement
50
2
Model
ZIP
3
Year
2012
4
Trim
Zip SP Euro 2
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Meter combination - Cruscotto
by
Oil pump

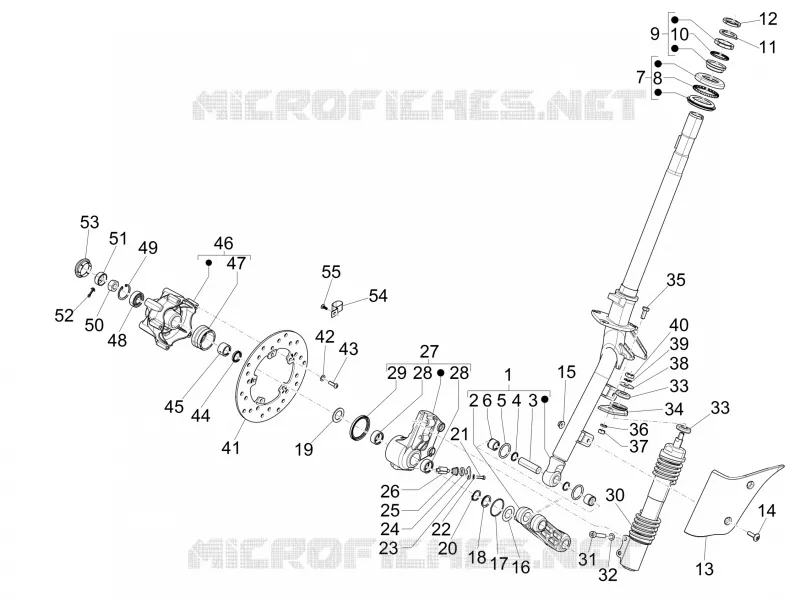

Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
1
Steering column tube
5972755
Not Available
2
Left suspension arm
6483975
£98,51 Unit Price incl. VAT
3
Piston pin
177451
£22,88 Unit Price incl. VAT
4
Gasket ring
119219
£1,58 Unit Price incl. VAT
5
Gasket
006731
Not Available
6
Roller cage
198513
£15,49 Unit Price incl. VAT
7
Lower steering bearing
650075
Not Available
8
Missing description
000000
Not Available
9
Upper thrust ring
650693
Not Available
10
Missing description
000000
Not Available
11
Washer
583071
£3,40 Unit Price incl. VAT
12
Steering tube ring nut
0111094
Not Available
13
Tyre
564991000C
£22,50 Unit Price incl. VAT
13
Tyre
56499100G7
£22,50 Unit Price incl. VAT
14
Metric screw M6x20
259830
Not Available
15
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
16
Washer
177445
£1,62 Unit Price incl. VAT
17
O-ring
177408
£1,33 Unit Price incl. VAT
18
Ring
177521
£1,62 Unit Price incl. VAT
19
Washer
177414
£1,62 Unit Price incl. VAT
20
Circlip
006422
Not Available
21
screw M5x16
031058
Not Available
22
Washer Ø5,3xØ10x0,5
006975
Not Available
23
Plate
269118
Not Available
24
Pad
266841
£1,86 Unit Price incl. VAT
25
Maintenance
564053
Not Available
26
Pinion
267819
£3,60 Unit Price incl. VAT
27
Not available
5602865
£182,66 Unit Price incl. VAT
28
Drawn cap
177436
Not Available
29
Ring
177494
£4,73 Unit Price incl. VAT
30
Shock absorber
598922
£168,82 Unit Price incl. VAT
31
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
32
Spring washer
709047
£0,70 Unit Price incl. VAT
33
Pad
216209
£1,81 Unit Price incl. VAT
34
Bracket
562305
£13,00 Unit Price incl. VAT
35
Hex screw M8x22
031119
Not Available
36
Spring washer 13,75x8,15x4,5
016408
Not Available
37
Nut M8x6,5
020108
Not Available
38
Washer
174088
£1,62 Unit Price incl. VAT
39
Washer
012535
Not Available
40
Nut
021210
Not Available
41
Brake disc
56395R
£61,37 Unit Price incl. VAT
42
Spring washer 6,4x11x0,5
006966
Not Available
43
Hex socket screw M6x20
271147
Not Available
44
Gasket ring
177443
£3,55 Unit Price incl. VAT
45
Roller cage
177442
£7,33 Unit Price incl. VAT
46
Front wheel hub
560284
Not Available
47
Ring gear counts Km socket
267818
£33,11 Unit Price incl. VAT
48
Bearing
177610
£20,51 Unit Price incl. VAT
49
Snap ring
006635
Not Available
50
Nut
021114
Not Available
51
Cap
177609
£3,76 Unit Price incl. VAT
52
Split pin
012789
Not Available
53
Cover
092517
Not Available
54
Hose clamp
271536
£4,38 Unit Price incl. VAT
55
screw
015952
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
