Parts Catalog
Rear cover - Splash guard
6
Parts Diagram
Parts Catalog
Main cable harness
by
Cylinder head cover
Rear cover - Splash guard
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
1
Rear protection
653447
£133,22 Unit Price incl. VAT
2
screw M6x16
624995
£1,27 Unit Price incl. VAT
3
Screw M6x16
272836
£1,13 Unit Price incl. VAT
4
Spring plate M6
254485
£1,64 Unit Price incl. VAT
5
Engine splash guard
653469
£25,67 Unit Price incl. VAT
6
Spring plate
230359
£0,95 Unit Price incl. VAT
7
Covers
599735
£12,84 Unit Price incl. VAT
8
Self tapping screw
297498
£0,60 Unit Price incl. VAT
9
Splash guard upper closing
654446
£26,48 Unit Price incl. VAT
10
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
11
Expansion plug
199190
£0,17 Unit Price incl. VAT
12
Self tapping screw
297498
£0,60 Unit Price incl. VAT
13
Number plate holder
654840
£17,74 Unit Price incl. VAT
14
screw M6x14
008375
Not Available
15
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
16
Number plate holder
584884
£31,69 Unit Price incl. VAT
17
Screw M4x12
015996
Not Available
18
Flat washer 4,2x12x1
013763
Not Available
19
Flat washer 4,2x7,6x0,9
016404
Not Available
20
Nut M4
020104
Not Available
21
Number-plate extension
584877
£5,88 Unit Price incl. VAT
22
Plug screw
268596
£0,62 Unit Price incl. VAT
23
Rear retroreflector
58233R
Not Available

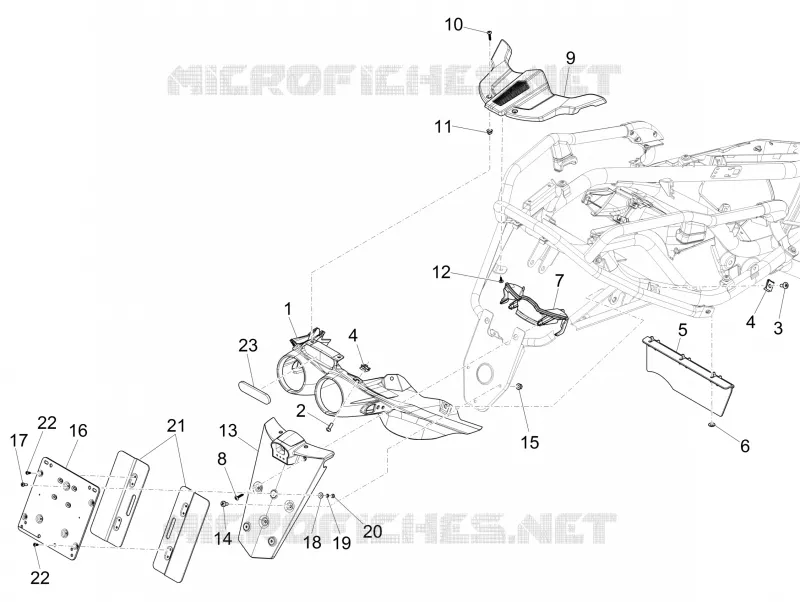

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
