1
Engine displacement
800
2
Model
GP
3
Year
2008
4
Trim
GP
5
Parts Catalog
Silencer
6
Parts Diagram
Parts Catalog
Meter combination - Cruscotto
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
Silencer
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
SILENCER WITH I.P.
872255
Not Available
1
Silencer with I.P.
875845
Not Available
1
SILENCER WITH I.P.
875380
Not Available
2
FRONT CYLINDER PIPE WITH I.P.
8719844
Not Available
2
Front cylinder pipe with i.p.
875841
Not Available
2
FRONT CYLINDER PIPE WITH I.P.
871984
Not Available
3
Graphite bushing
874946
Not Available
4
Head side rear cylinder pipe
875843
Not Available
4
Hose clamp
874957
£27,76 Unit Price incl. VAT
5
Head side rear cylinder pipe
875843
Not Available
5
BACK CYLINDER PIPE SIDE HEAD
8719864
Not Available
5
BACK CYLINDER PIPE SIDE HEAD
871986
Not Available
6
Graphite bushing
874946
Not Available
7
Hose clamp
874957
£27,76 Unit Price incl. VAT
7
Hose clamp
840370
Not Available
8
Exhaust pipe gasket
851582
£14,47 Unit Price incl. VAT
9
Flanged nut
015341
Not Available
10
Screw w/ flange M8x45
487211
Not Available
11
Lamda sensor l. 325 mm
584344
£178,32 Unit Price incl. VAT
12
Lambda probe connector support
847974
£7,70 Unit Price incl. VAT
13
Silencer connection arm
8736195
Not Available
14
Hexagonal-head screw m8x90
828566
£1,56 Unit Price incl. VAT
15
COMPLETE SILENCER
872000
Not Available
15
Silencer
874480
Not Available
16
Gasket
872256
£9,88 Unit Price incl. VAT
17
screw
319165
£1,27 Unit Price incl. VAT
18
Washer
316144
£0,89 Unit Price incl. VAT
19
Screw w/ flange
478895
£2,48 Unit Price incl. VAT
19
Hex socket screw
277330
£0,89 Unit Price incl. VAT
19
Screw w/ flange M8x45
487211
Not Available
20
Flat washer 16x6,5x1,5
013880
Not Available
20
Spring washer 16x8,2x2,2
834187
£1,04 Unit Price incl. VAT
21
Self locking nut
012138
Not Available
21
Nut M8
020008
Not Available
22
Protection
873524
£86,45 Unit Price incl. VAT
23
screw M5x10
842908
Not Available
24
Washer
567672
£0,24 Unit Price incl. VAT
25
Protection
873703
£62,80 Unit Price incl. VAT
26
Protection
873704
£63,11 Unit Price incl. VAT
27
screw M5x10
842908
Not Available
28
Washer 6,6x18x1,6
841821
£0,62 Unit Price incl. VAT
29
Fairlead
487665
£1,94 Unit Price incl. VAT
30
Protection
872565
Not Available
31
screw M5x10
842908
Not Available
32
Washer
567672
£0,24 Unit Price incl. VAT
33
Washer 6,6x18x1,6
841821
£0,62 Unit Price incl. VAT
34
Spacer
826117
£1,06 Unit Price incl. VAT
35
Conical washer
834951
£1,16 Unit Price incl. VAT
36
Flat washer
875371
£3,89 Unit Price incl. VAT
37
Flat washer
875733
Not Available

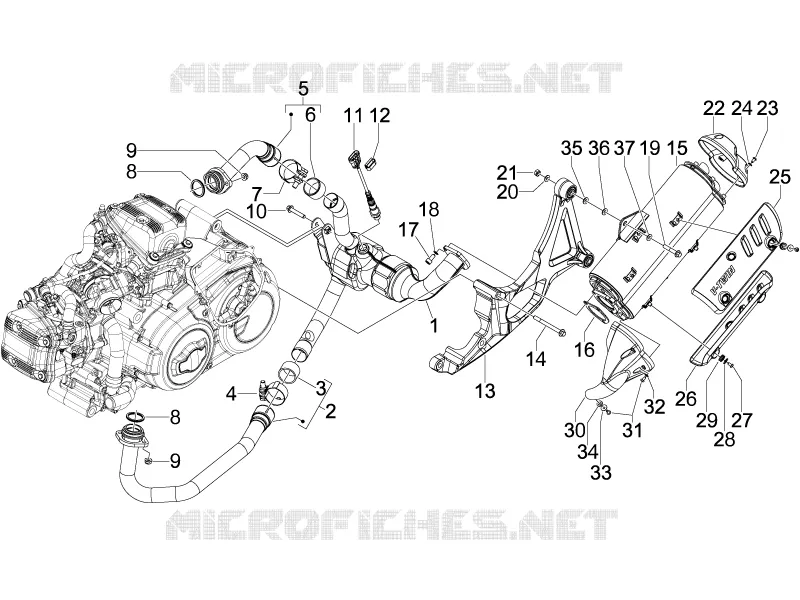

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
