1
Engine displacement
250
2
Model
NEXUS
3
Year
2007
4
Trim
Nexus E3
5
Parts Catalog

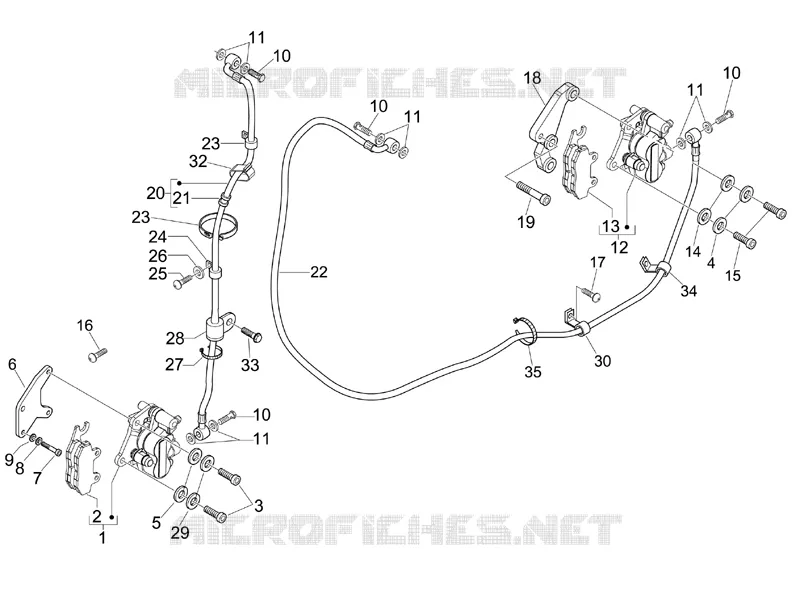

Brakes pipes - Calipers
6
Parts Diagram
Parts Catalog
Rear suspension - Shock absorber/s
by
Selectors - Switches - Buttons
Brakes pipes - Calipers
1
2
3
4
5
6
7
8
9
10
10
10
10
11
11
11
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
32
33
34
35
1
Brake caliper Heng Tong
CM068301
Not Available
2
Brake pads couple Heng Tong
647078
£48,58 Unit Price incl. VAT
3
screw
319165
£1,27 Unit Price incl. VAT
4
Spring washer
709047
£0,70 Unit Price incl. VAT
5
Washer
016604
Not Available
6
Brake caliper support plate
649553
Not Available
6
plate
599584
Not Available
7
screw
564486
Not Available
8
Washer
709110
Not Available
9
Washer
709646
Not Available
10
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
11
Gasket
127927
£1,04 Unit Price incl. VAT
12
Rear brake caliper
CM068304
£127,56 Unit Price incl. VAT
13
Brake pads couple Heng Tong
647078
£48,58 Unit Price incl. VAT
14
Flat washer 8,2x17x2,5
828961
£0,52 Unit Price incl. VAT
15
screw
598921
£1,06 Unit Price incl. VAT
16
screw
018629
Not Available
17
Screw M6x16
272836
£1,13 Unit Price incl. VAT
18
CALIPER SUPPORT PLATE
649162
£33,30 Unit Price incl. VAT
18
plate for mounting rear caliper
647798
Not Available
19
screw
647799
£4,62 Unit Price incl. VAT
20
BREAK PIPES
975693
Not Available
21
Fairlead
274350
Not Available
22
REAR BRAKE PIPE
647695
£71,66 Unit Price incl. VAT
23
Hose clamp
307166
£1,27 Unit Price incl. VAT
24
Hose clamp
269273
£1,90 Unit Price incl. VAT
25
Hex socket screw
122675
£0,38 Unit Price incl. VAT
26
Spring washer 6,4x11x0,5
006966
Not Available
27
Fairlead
230636
£3,90 Unit Price incl. VAT
28
Hose clamp
564836
£1,50 Unit Price incl. VAT
29
Spring washer
709047
£0,70 Unit Price incl. VAT
30
Hose clamp
229343
Not Available
32
Hose clamp
217280
Not Available
33
Screw w/ flange M6x16
434541
Not Available
34
Hose clamp
564761
£1,43 Unit Price incl. VAT
35
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
