Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Reduction unit
by
Helmet huosing - Undersaddle
Oil pump
32
30
31
29
28
27
26
25
24
23
22
20
19
18
17
15
14
12
9
8
7
6
5
4
3
2
1
1
Oil pump assembly
844352
Not Available
1
Oil pump assembly
82877R
Not Available
2
Carter-oil pump gasket
486082
Not Available
2
Carter-oil pump gasket
847929
£1,19 Unit Price incl. VAT
3
Screw w/ flange M5x35
829593
£1,27 Unit Price incl. VAT
4
Motor oil cup
846096
£78,92 Unit Price incl. VAT
5
Gasket
846098
£6,12 Unit Price incl. VAT
6
Oil filler plug
846819
Not Available
7
O-ring
479986
Not Available
8
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
9
Timing system cover
847116
£59,46 Unit Price incl. VAT
12
Guarnizione cilindro/tendicatena
847928
£3,24 Unit Price incl. VAT
14
Oil pump chain
82649R
£15,60 Unit Price incl. VAT
15
Oil pump control pinion
82783R
£22,50 Unit Price incl. VAT
17
Chain tensioner rod
840344
£11,44 Unit Price incl. VAT
18
Screw w/ flange M6x25
414837
Not Available
19
Chain tensioner rod spacer
485868
Not Available
20
Complete chain tensioner
82650R
£25,94 Unit Price incl. VAT
22
Screw w/ flange M6x16
434541
Not Available
23
O-Ring seal ring
825952
£0,79 Unit Price incl. VAT
24
Timing chain pinion
82782R
£22,31 Unit Price incl. VAT
25
Camshaft chain
82723R
£59,88 Unit Price incl. VAT
26
Chain tensioner sliding block
847516
£14,69 Unit Price incl. VAT
27
Belleville spring Ø6,4xØ20x2
436695
£2,09 Unit Price incl. VAT
28
Screw w/ flange M6x14
833722
Not Available
29
Screw w/ flange M6x30
289731
Not Available
30
Oil seal washer
483918
£1,27 Unit Price incl. VAT
31
Hose clamp
564629
£3,49 Unit Price incl. VAT
32
Oil pump gear
287913
£8,52 Unit Price incl. VAT

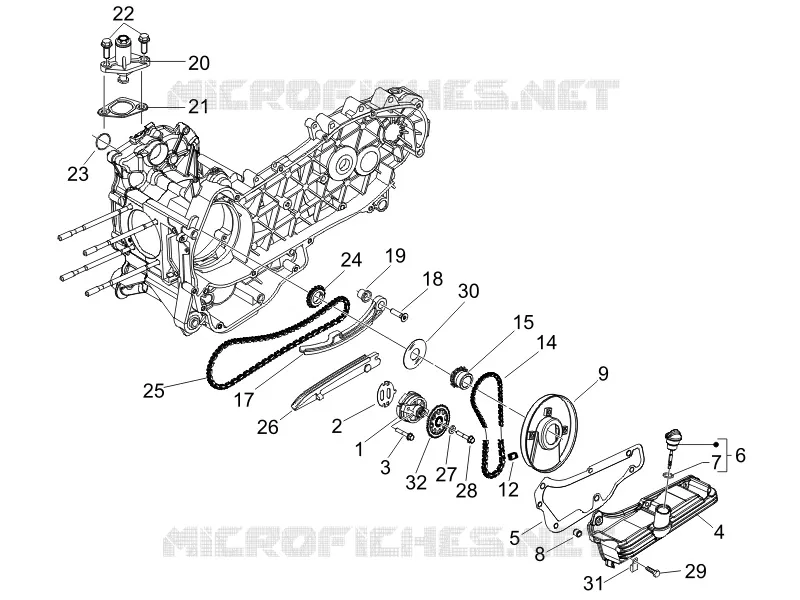

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
