Parts Catalog
Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Swinging arm
by
Locks
Rear suspension - Shock absorber/s
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Rear shock absorber cpl.
647524
£135,94 Unit Price incl. VAT
2
Screw w/ flange
598838
£2,17 Unit Price incl. VAT
3
Flat washer
178790
£1,64 Unit Price incl. VAT
4
Braccio sospensione DX completo
849125
£213,23 Unit Price incl. VAT
5
Ball bearing
82545R
£22,90 Unit Price incl. VAT
6
Washer
016627
Not Available
7
Self locking nut M10
002440
Not Available
8
Hex socket screw
826298
£1,20 Unit Price incl. VAT
9
Spring washer
709047
£0,70 Unit Price incl. VAT
10
Washer
013776
Not Available
11
Rear Shock absorber fixing bracket
647610
£16,02 Unit Price incl. VAT
12
Screw w/ flange M10
268158
£1,87 Unit Price incl. VAT
13
Bushing
647621
£12,31 Unit Price incl. VAT
14
Self locking nut M10
002440
Not Available
15
Hex socket screw M8x50
844483
£0,65 Unit Price incl. VAT
16
Nut M8
020008
Not Available

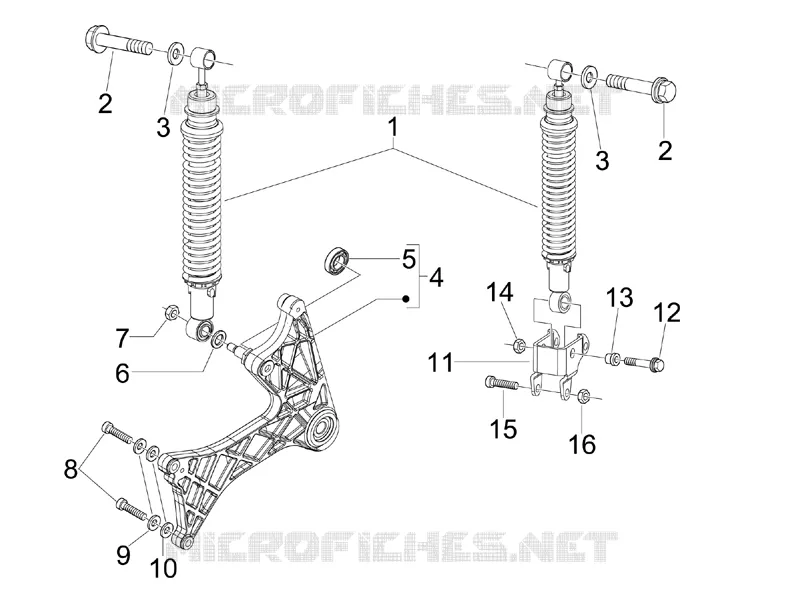

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
