1
Engine displacement
500
2
Model
NEXUS
3
Year
2006
4
Trim
Nexus E3
5
Parts Catalog
Remote control switches - Battery - Horn
6
Parts Diagram
Parts Catalog
Helmet huosing - Undersaddle
by
Air filter

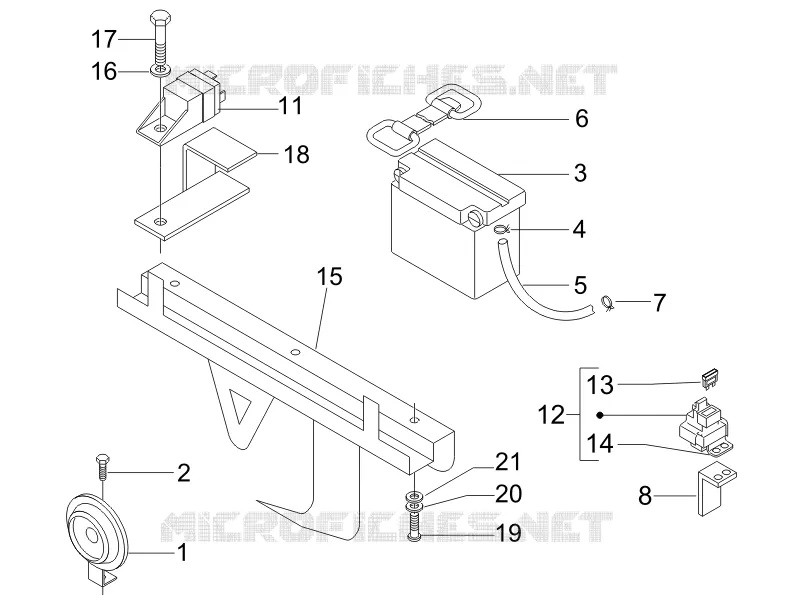

Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
11
12
13
14
15
16
17
18
19
20
21
1
Horn
CM071801
Not Available
2
Screw w/ flange M6x16
434541
Not Available
3
Battery YTX14AHL-BS 166x90x134
640201
£287,18 Unit Price incl. VAT
3
Battery 12V-14Ah
584033
£119,76 Unit Price incl. VAT
4
Spring
140435
£1,00 Unit Price incl. VAT
5
Breather pipe
580075
£10,10 Unit Price incl. VAT
6
Belt
583921
£7,61 Unit Price incl. VAT
7
Hose clamp
639082
£1,99 Unit Price incl. VAT
8
Square
584305
£5,40 Unit Price incl. VAT
9
Screw m6x12
031086
Not Available
10
Spring washer 6,4x11,8x1
016406
Not Available
11
Rem. control switch 12V-30A
58099R
Not Available
12
Starter relay
582690
£37,98 Unit Price incl. VAT
13
Fuse 30A
581440
Not Available
14
Flexible support
582906
Not Available
15
STIRRUP
584792
Not Available
16
Screw M6x16
272836
£1,13 Unit Price incl. VAT
17
Washer
078307
Not Available
18
Bracket
975749
£38,99 Unit Price incl. VAT
19
Screw m8x18 zn
031117
Not Available
20
Spring washer 13,75x8,15x4,5
016408
Not Available
21
Flat washer 8,4x18x2
003038
Not Available
22
Pad
258737
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
