1
Engine displacement
125
2
Model
RUNNER
3
Year
2006
4
Trim
Runner VX 4T E3
5
Parts Catalog

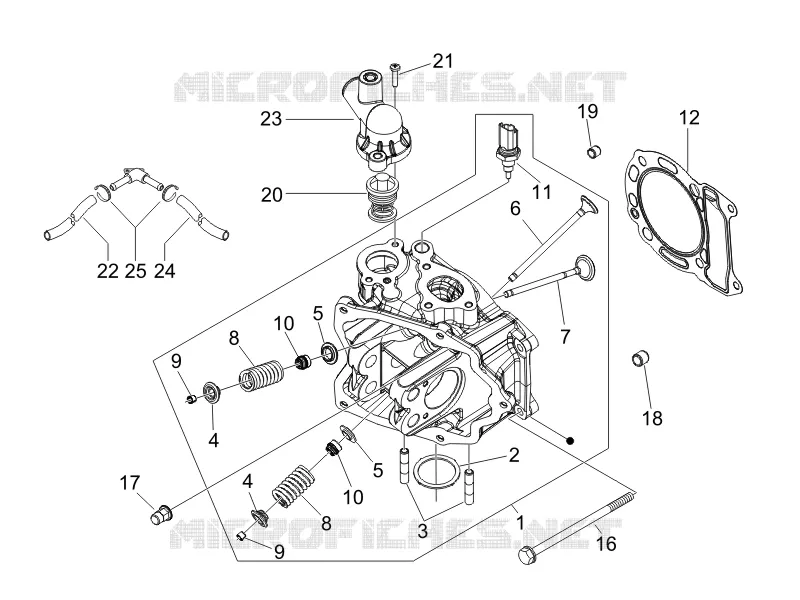

Head unit - Valve
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
Rocking levers support unit
Head unit - Valve
1
2
3
4
4
5
5
6
7
8
8
9
9
10
10
11
12
16
17
18
19
20
21
22
23
24
25
1
Cylinder head assembly
847594
Not Available
2
Exhaust pipe gasket
480853
£5,16 Unit Price incl. VAT
3
Stud bolt M7
435629
£1,87 Unit Price incl. VAT
4
Upper cap
483914
£5,71 Unit Price incl. VAT
5
Lower cap
483711
£2,12 Unit Price incl. VAT
6
Intake valve
484733
Not Available
6
Intake valve
872999
Not Available
7
Exhaust valve
873114
Not Available
7
Exaust valve
484734
Not Available
8
Spring
828480
£11,04 Unit Price incl. VAT
9
Valve half-cone
285846
£1,98 Unit Price incl. VAT
10
Valve gasket ring
436438
£11,03 Unit Price incl. VAT
11
Thermistor
82622R
£25,90 Unit Price incl. VAT
12
Cylinder head gasket 0,3 mm
831173
Not Available
13
Plug M6x10
842360
£2,20 Unit Price incl. VAT
16
Screw w/ flange
485603
£1,96 Unit Price incl. VAT
17
Nut M8x1,25
411296
£1,97 Unit Price incl. VAT
18
Locating dowel Ø11x10
478115
Not Available
19
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
20
Thermostat
82831R
Not Available
21
Hex socket screw M5x20
845753
Not Available
22
Head-carb.by-pass pipe
827921
£5,26 Unit Price incl. VAT
23
Cover
828263
£10,46 Unit Price incl. VAT
24
By-pass pipe
434381
£9,40 Unit Price incl. VAT
25
Hose clamp
CM002903
£0,24 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
