1
Engine displacement
200
2
Model
RUNNER
3
Year
2006
4
Trim
Runner VXR 4T Race E3
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Handlebars - Master cil.
by
Rear wheel
Front wheel
1
2
3
4
4
5
6
7
8
9
10
11
12
14
15
16
17
18
18
20
1
CPL.FRONT WHEEL WITH BEAR
949326000G
Not Available
2
Nut M12
271740
£2,20 Unit Price incl. VAT
3
Cup
564475
Not Available
3
Guard ring
271744
Not Available
4
Bearing
271745
Not Available
5
Wheel pin
959376
£66,94 Unit Price incl. VAT
6
spacer
959377
Not Available
7
spacer
959378
£17,77 Unit Price incl. VAT
8
Front tyre 120/70 R14 55P Pirelli
949601
Not Available
8
Tyre (Sava) 120/70-14"
949602
Not Available
9
Tubeless tyre valve
270991
£6,00 Unit Price incl. VAT
10
Hex socket screw M6x20
271147
Not Available
11
Washer 6,4x10x0,7
274706
£0,94 Unit Price incl. VAT
12
Front brake disk
56394R
£60,06 Unit Price incl. VAT
12
Front brake disk
601749
Not Available
14
Phonic wheel
58123R
Not Available
15
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
16
Spring
179013
£5,17 Unit Price incl. VAT
17
Self locking nut M6
241936
£0,74 Unit Price incl. VAT
18
Screw w/ flange M6x25
414837
Not Available
19
Hose clamp
639426
£1,94 Unit Price incl. VAT
20
DECORATIVE STRIP
64773600GP
Not Available
20
Decorative strip
64773600RL
Not Available

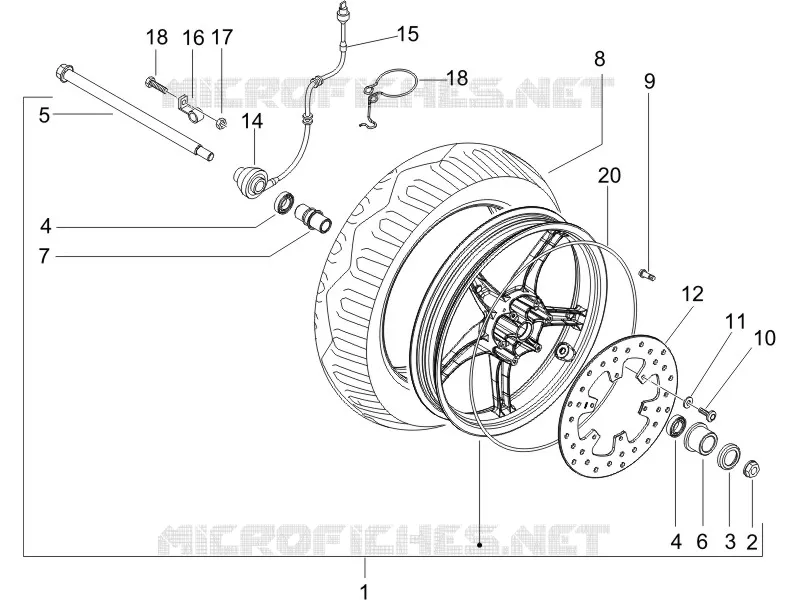

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
