Engine displacement
150
2
Model
FLY
3
Year
2015
4
Trim
Fly 4T 3V ie
5
Parts Catalog
Anti-percolation system
6
Parts Diagram
Parts Catalog
Driving mirror/s
by
Handlebars - Master cil.
Anti-percolation system
1
2
3
4
5
6
7
7
7
7
7
7
7
8
8
8
8
8
8
8
9
10
11
12
13
14
15
15
16
17
1
"Roll-over" valve
CM028205
£41,53 Unit Price incl. VAT
2
Maintenance
576454
£10,99 Unit Price incl. VAT
3
Valve support
1B000021
£8,57 Unit Price incl. VAT
4
Screw w/ flange M6x16
B016777
£1,27 Unit Price incl. VAT
5
Spring washer 6,4x11,8x1
016406
Not Available
6
pipe sae J30 R11-A o R12 1/4"
CM177946
£80,59 Unit Price incl. VAT
7
Hose clamp
CM001914
£1,57 Unit Price incl. VAT
8
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
9
Sae j30 pipe R11-A O R12 1/4" L=920
CM177910
£37,28 Unit Price incl. VAT
10
Canister completo di stiker
1B0045715
£109,08 Unit Price incl. VAT
11
Canister support USA
1B000033
£7,44 Unit Price incl. VAT
12
Belt
583921
£7,61 Unit Price incl. VAT
13
Screw w/ flange M6x16
B016777
£1,27 Unit Price incl. VAT
14
Spring washer 6,4x11,8x1
016406
Not Available
15
Sae j30 pipe R11-A O R12 1/4" L=920
CM177910
£37,28 Unit Price incl. VAT
16
Nut M6
020106
Not Available
17
Valve
654935
£23,59 Unit Price incl. VAT

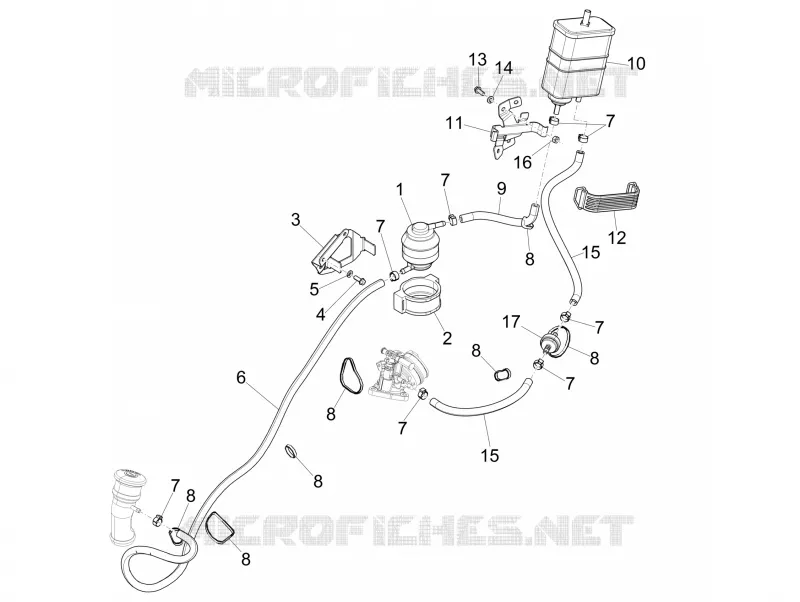

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
