1
Engine displacement
200
2
Model
RUNNER
3
Year
2006
4
Trim
Runner VXR 4T Race
5
Parts Catalog

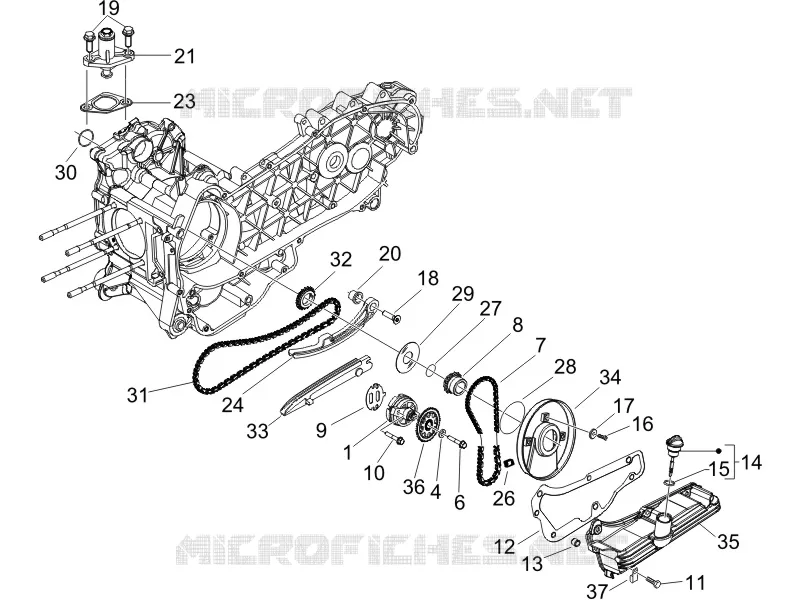

Oil pump
6
Parts Diagram
Parts Catalog
Crankcase cover - Crankcase cooling
by
Stater - Electric starter
Oil pump
37
36
35
34
33
32
31
30
29
28
27
26
24
23
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
4
1
1
Oil pump assembly
844352
Not Available
1
Oil pump assembly
82877R
Not Available
2
Notched washer 6,6x11x0
012533
Not Available
4
Belleville spring Ø6,4xØ20x2
436695
£2,09 Unit Price incl. VAT
6
Screw w/ flange M6x14
833722
Not Available
7
Oil pump chain
82649R
£15,60 Unit Price incl. VAT
8
Oil pump control pinion
82783R
£22,50 Unit Price incl. VAT
9
Carter-oil pump gasket
486082
Not Available
9
Carter-oil pump gasket
847929
£1,19 Unit Price incl. VAT
10
Screw w/ flange M5x35
829593
£1,27 Unit Price incl. VAT
11
Screw w/ flange M6x30
289731
Not Available
12
Sump gasket
830128
£6,46 Unit Price incl. VAT
13
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
14
Oil plug assembly
843364
£5,90 Unit Price incl. VAT
15
O-ring
479986
Not Available
16
Self-tapping screw M5x12
015585
Not Available
17
Plain washer
487937
Not Available
18
Screw w/ flange M6x25
414837
Not Available
19
Screw w/ flange M6x16
434541
Not Available
20
Chain tensioner rod spacer
485868
Not Available
21
Complete chain tensioner
82650R
£25,94 Unit Price incl. VAT
23
Guarnizione cilindro/tendicatena
847928
£3,24 Unit Price incl. VAT
24
Chain tensioner rod
840510
£6,31 Unit Price incl. VAT
26
Oil pump chain drift
434345
£7,32 Unit Price incl. VAT
27
Gasket ring
82538R
£15,91 Unit Price incl. VAT
28
Gasket ring
825620
£8,42 Unit Price incl. VAT
29
Oil seal washer
483918
£1,27 Unit Price incl. VAT
30
O-Ring seal ring
825952
£0,79 Unit Price incl. VAT
31
Camshaft chain
82644R
Not Available
32
Timing chain pinion
82782R
£22,31 Unit Price incl. VAT
33
Chain tensioner sliding block
828308
£4,94 Unit Price incl. VAT
34
Timing system cover
847116
£59,46 Unit Price incl. VAT
34
Timing system cover
483775
Not Available
35
Motor oil cup
843761
£70,16 Unit Price incl. VAT
36
Oil pump gear
287913
£8,52 Unit Price incl. VAT
37
Hose clamp
564629
£3,49 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
