1
Engine displacement
200
2
Model
RUNNER
3
Year
2006
4
Trim
Runner VXR 4T Race E3
5
Parts Catalog

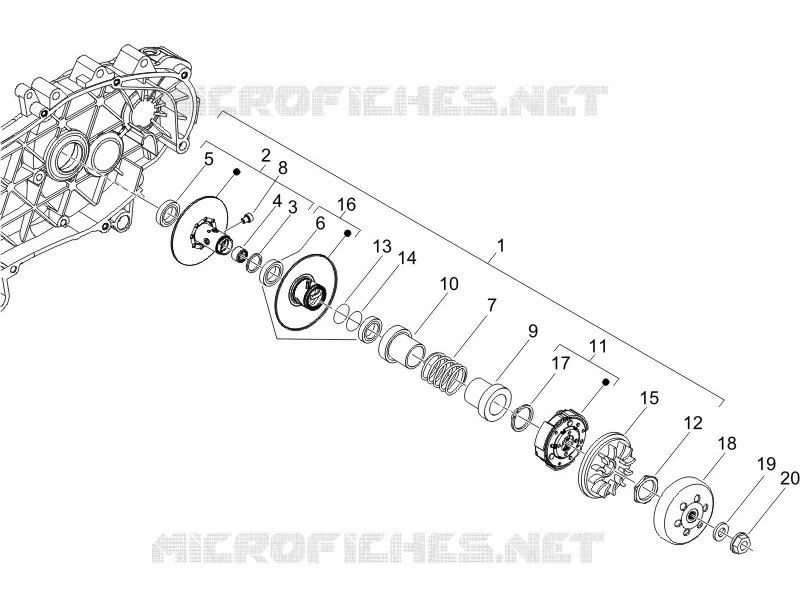

Driven pulley
6
Parts Diagram
Parts Catalog
Wheel huosing - Mudguard
by
Cooler pump
Driven pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Secondary pulley
82745R
Not Available
2
Sec. fixed sheave, complete
833669
Not Available
3
Snap ring
483226
£1,87 Unit Price incl. VAT
4
Roller cage 20x29x18
82518R
£29,20 Unit Price incl. VAT
5
Radial bearing 17x30
483261
Not Available
6
Gasket ring
431089
£8,58 Unit Price incl. VAT
7
Variator spring
833673
£11,71 Unit Price incl. VAT
8
Guide pin L=12,5
828717
£1,50 Unit Price incl. VAT
9
Clutch side cap
487936
£8,76 Unit Price incl. VAT
10
Cup
833674
£31,13 Unit Price incl. VAT
11
CLUTCH SHOES ASSY BEVERLY
842376
Not Available
11
CLUTCH SHOES ASSY
842377
Not Available
12
Ring nut
433232
£13,28 Unit Price incl. VAT
13
Gasket
430585
£0,88 Unit Price incl. VAT
14
O-ring
834044
£3,34 Unit Price incl. VAT
15
Fan
482305
£7,19 Unit Price incl. VAT
16
Sec. sliding sheave, complete
833672
Not Available
17
Gasket ring
006410
Not Available
18
Clutch drum
844049
Not Available
19
Flat washer 22x12,1x1
274246
£1,00 Unit Price incl. VAT
20
Nut M12x1.25
486324
£1,04 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
