1
Engine displacement
50
2
Model
RUNNER
3
Year
2006
4
Trim
Runner Pure Jet
5
Parts Catalog

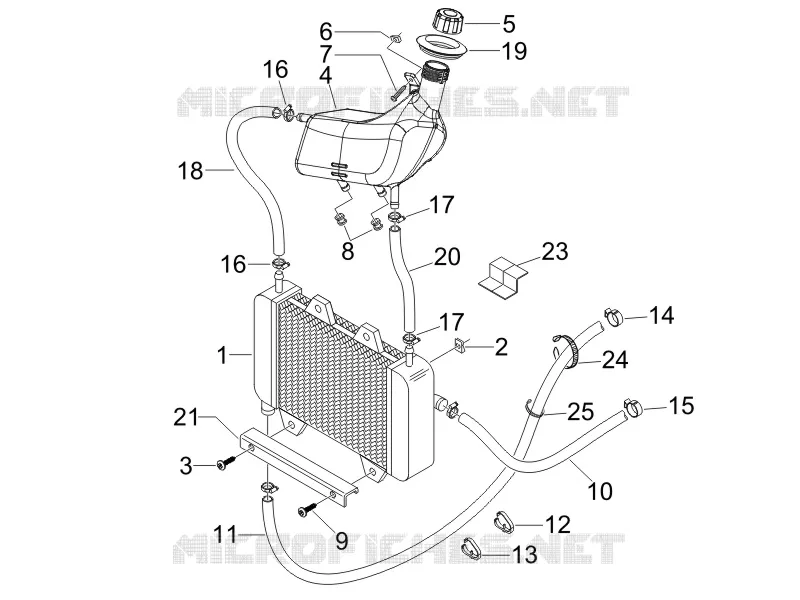

Cooling system
6
Parts Diagram
Parts Catalog
Supply system
by
Handlebars coverages
Cooling system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
19
20
21
23
24
25
1
Water cooler
299389
Not Available
2
Spring plate M6
254485
£1,64 Unit Price incl. VAT
3
Screw M6x16
272836
£1,13 Unit Price incl. VAT
4
Coolant tank
949429
Not Available
5
Expansion tank plug
623673
£17,92 Unit Price incl. VAT
6
Spring plate
CM017410
£0,71 Unit Price incl. VAT
7
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
8
Upper rubber
351782
£2,02 Unit Price incl. VAT
9
Screw M6x16
272836
£1,13 Unit Price incl. VAT
10
WATER HOSE
949629
£37,37 Unit Price incl. VAT
11
Radiator pump connection pipe
624252
£54,12 Unit Price incl. VAT
12
Hose clamp
CM001905
£1,62 Unit Price incl. VAT
13
Hose clamp
CM001909
£1,88 Unit Price incl. VAT
14
Non return spring
CM006902
£1,55 Unit Price incl. VAT
15
Pipes/cables retainer spring
CM006903
£3,58 Unit Price incl. VAT
16
Hose clamp
CM001902
Not Available
17
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
18
RETURN RADIATOR/EXPANSION TANK PIPE
949462
Not Available
18
Cooler-tank return pipe
CM007013
£26,44 Unit Price incl. VAT
19
Fuel tank gasket
620737
£2,17 Unit Price incl. VAT
20
Cooler-tank return pipe
CM007013
£26,44 Unit Price incl. VAT
21
Radiator support bracket
949370
£18,38 Unit Price incl. VAT
23
Guard
580160
Not Available
24
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
25
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
