1
Engine displacement
50
2
Model
RUNNER
3
Year
2006
4
Trim
Runner Pure Jet Race
5
Parts Catalog
Stater - Electric starter
6

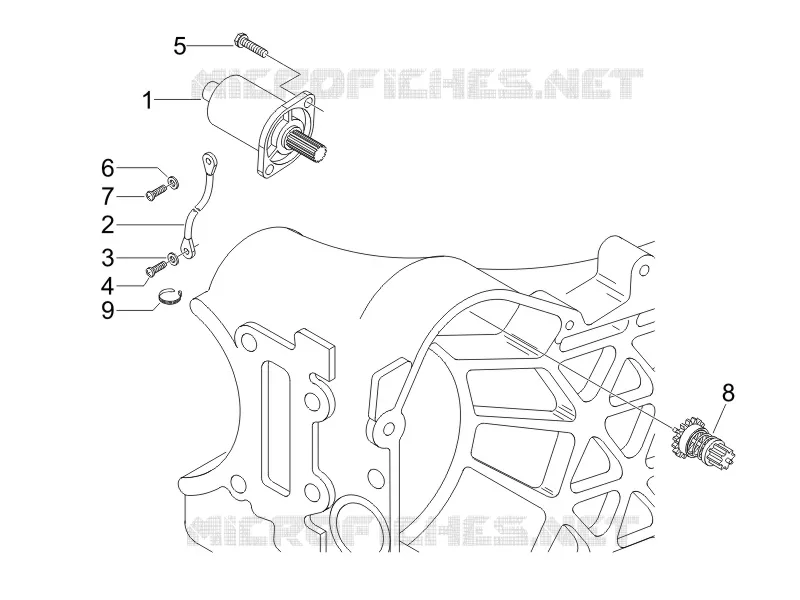

Parts Diagram
Parts Catalog
Cooler pump
by
Flywheel magneto
Stater - Electric starter
1
2
3
4
5
6
7
8
9
1
Starter motor
96921R
£152,03 Unit Price incl. VAT
2
Cable harness
832358
Not Available
3
Washer 5.3x10x10
006965
Not Available
4
Self-tapping screw M5x12
015585
Not Available
5
Screw w/ flange M6x25
414837
Not Available
6
Flat washer 4,2x7,6x0,9
016404
Not Available
7
screw
018644
Not Available
8
Complete gear unit
96922R
Not Available
9
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
