1
Engine displacement
50
2
Model
RUNNER
3
Year
2006
4
Trim
Runner Pure Jet -SC
5
Parts Catalog

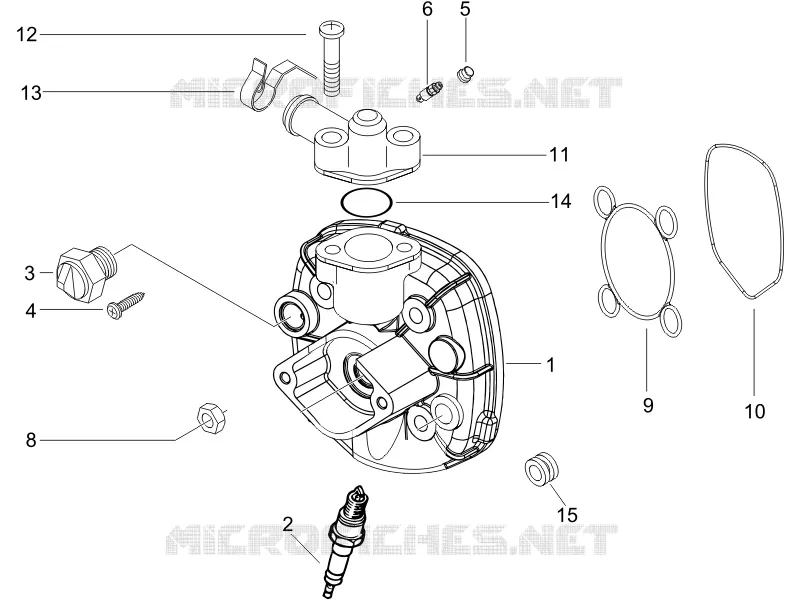

Cylinder head cover
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
Driving pulley
Cylinder head cover
1
2
3
4
5
6
8
9
10
11
12
13
14
15
1
Cylinder head
830202
Not Available
2
Spark plug
828490
Not Available
3
Thermostat
483395
£46,62 Unit Price incl. VAT
4
Self-tapping screw
256756
£1,10 Unit Price incl. VAT
5
Bleed valve cap
063435
Not Available
6
Bleed screw
430045
£1,60 Unit Price incl. VAT
8
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
9
Inner gasket head
288289
£5,99 Unit Price incl. VAT
10
Outer gasket head
482988
£3,13 Unit Price incl. VAT
11
Water outlet union
832262
Not Available
12
TBIC screw
015597
Not Available
13
Hose clamp
564629
£3,49 Unit Price incl. VAT
14
O-ring
289514
£0,83 Unit Price incl. VAT
15
Pad
195700
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
