1
Engine displacement
125
2
Model
GRANTURISMO
3
Year
2006
4
Trim
Granturismo L E3
5
Parts Catalog

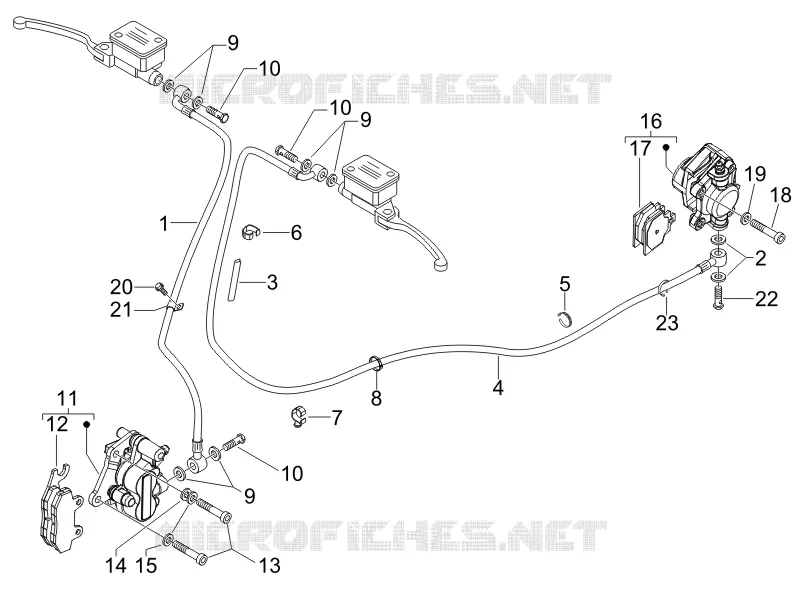

Brakes pipes - Calipers
6
Parts Diagram
Parts Catalog
Rear wheel
by
Transmissions
Brakes pipes - Calipers
1
2
3
4
5
6
7
8
9
9
9
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Rear brake hydraulic piping
597856
£69,78 Unit Price incl. VAT
2
Gasket
127927
£1,04 Unit Price incl. VAT
3
Guard
580160
Not Available
4
Rear brake pipe
600195
£117,29 Unit Price incl. VAT
5
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
6
Hose clamp
564761
£1,43 Unit Price incl. VAT
7
Hose clamp
217280
Not Available
8
Pipes/cables retainer spring
CM006903
£3,58 Unit Price incl. VAT
9
Gasket
127927
£1,04 Unit Price incl. VAT
10
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
11
Brake caliper Heng Tong
CM068301
Not Available
12
Brake pads couple Heng Tong
647078
£48,58 Unit Price incl. VAT
13
screw
319532
£1,43 Unit Price incl. VAT
14
Flat washer 15x8,4x1,5
003058
Not Available
15
Spring washer
709047
£0,70 Unit Price incl. VAT
16
Pinza freno Heng Tong
CM074101
Not Available
17
Rear Brake pads couple.
647161
£24,91 Unit Price incl. VAT
18
screw M8x30
015792
Not Available
19
Spring washer
709047
£0,70 Unit Price incl. VAT
20
Screw w/ flange M6x30
289731
Not Available
21
Hose clamp
597418
£3,78 Unit Price incl. VAT
22
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
23
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
