1
Engine displacement
125
2
Model
GTV
3
Year
2006
4
Trim
GTV 4T E3
5
Parts Catalog
Stand/s
6
Parts Diagram
Parts Catalog
Frame/bodywork
by
Front shield
Stand/s
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
1
VEHICLE CENTER STAND GT
56284R
Not Available
2
Gasket
191189
£0,73 Unit Price incl. VAT
3
Spring
295789
£7,18 Unit Price incl. VAT
4
O-ring 12,42x1
434947
£0,24 Unit Price incl. VAT
5
Stand pin
599097
£18,42 Unit Price incl. VAT
6
Spring
599561
£8,36 Unit Price incl. VAT
7
Pad
967351
£3,61 Unit Price incl. VAT
8
Hex screw M10x130
030115
Not Available
9
Self locking nut M10
232108
Not Available
10
O-ring
273754
£0,73 Unit Price incl. VAT
11
Spacer
582298
£15,12 Unit Price incl. VAT
12
Internal lateral stand spring
582850
£4,15 Unit Price incl. VAT
13
Lateral stand spring
582851
£3,83 Unit Price incl. VAT
14
Lateral stand
599020
Not Available
15
Pad
581560
£3,23 Unit Price incl. VAT

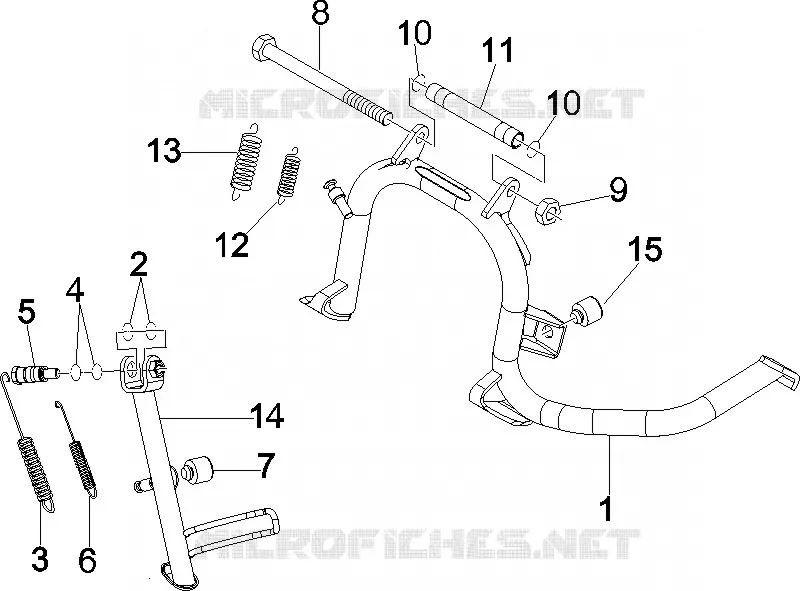

Find the detailed Stand/s GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
