1
Engine displacement
200
2
Model
GRANTURISMO
3
Year
2006
4
Trim
Granturismo L
5
Parts Catalog
Front headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Selectors - Switches - Buttons
by
Rear headlamps - Turn signal lamps

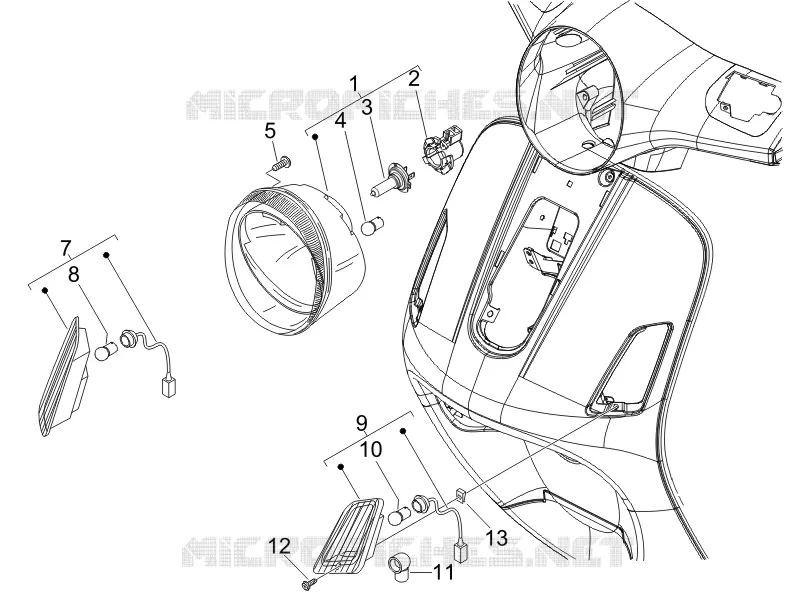

Front headlamps - Turn signal lamps
1
2
3
4
5
7
8
9
10
11
12
13
1
Headlamp, assy
584977
Not Available
2
Lampholder
253327
£6,29 Unit Price incl. VAT
3
Lamp 12V-5W
292022
Not Available
4
Lamp H4 12V-60/55W
292723
£18,91 Unit Price incl. VAT
5
Self tapping screw L=35 mm
296458
£0,52 Unit Price incl. VAT
7
RH front turn indicator
638715
£41,80 Unit Price incl. VAT
8
Lamp 12V-10W
584332
£3,77 Unit Price incl. VAT
9
LH front turn indicator
638716
£41,80 Unit Price incl. VAT
10
Lamp 12V-10W
584332
£3,77 Unit Price incl. VAT
11
Cap
250522
Not Available
12
Self-tap screw M4,2x19
008457
Not Available
13
Plate
CM017406
£0,95 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
