1
Engine displacement
250
2
Model
GT
3
Year
2006
4
Trim
GT ie 60° E3
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Meter combination - Cruscotto
by
Swinging arm

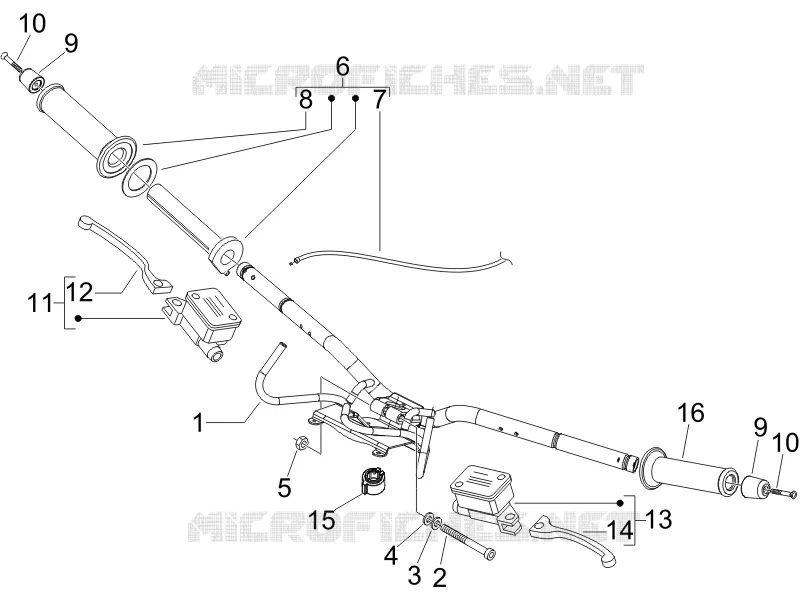

Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
1
Handlebar with U.P.
624685
Not Available
2
screw
223605
Not Available
3
Flat elastic washer with internal toothing 17x10,3x2
012543
Not Available
4
Flat washer
178790
£1,64 Unit Price incl. VAT
5
Nut M10
015330
Not Available
6
Device port complete gas com. sleeve.
64831100ER
Not Available
7
Throttle opening transmission
648173
£62,17 Unit Price incl. VAT
8
Complete right hand grip
648551
£13,88 Unit Price incl. VAT
9
Anti vib.weight trailing
582034
Not Available
10
Countersunk-head screw
653019
£1,24 Unit Price incl. VAT
11
Front master cilinder
CM080801
Not Available
12
(Heng Tong) Right brake lever
648378
£37,86 Unit Price incl. VAT
13
Rear master cylinder
CM079901
Not Available
14
(Heng Tong) Right brake lever
648378
£37,86 Unit Price incl. VAT
15
Collar
582828
£2,11 Unit Price incl. VAT
16
Complete left hand grip
648550
£13,88 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
