Flywheel magneto cover - Oil filter for GTS 4T E3 from 2007

Free shipping for all orders to United Kingdom over £150! See conditions.

Flywheel magneto cover - Oil filter

1

Flywheel cover cpl.

8482595

Not Available

2

SAS valve

82731R

Not Available

3

Gasket

831256

£1,70 Unit Price incl. VAT

4

Filter

831257

£1,32 Unit Price incl. VAT

5

Gasket

831258

£5,09 Unit Price incl. VAT

6

Cover

831255

£8,18 Unit Price incl. VAT

7

Screw M5x22

828662

£1,33 Unit Price incl. VAT

8

pipe

848080

£34,90 Unit Price incl. VAT

9

Water pump rod with U.P.

845633

Not Available

10

Gasket ring

842595

Not Available

11

Water pump impeller cpl.

844730

£12,84 Unit Price incl. VAT

12

Pump impeller drive key

872908

£13,58 Unit Price incl. VAT

13

Self tapping screw L=35 mm

296458

£0,52 Unit Price incl. VAT

14

Washer 5.3x10x10

006965

Not Available

15

Plain washer 12x5.2x1

006078

Not Available

16

Special screw

82869R

£15,30 Unit Price incl. VAT

17

Washer

828535

£0,16 Unit Price incl. VAT

18

Locating dowel Ã˜7,5x12

277916

£6,38 Unit Price incl. VAT

19

screw

828493

£0,58 Unit Price incl. VAT

20

Washer 5.3x10x10

006965

Not Available

21

Oil filter plug

82823R

Not Available

22

O-ring 31,47x1,78

285536

£1,64 Unit Price incl. VAT

23

Intake oil filter

483841

£4,88 Unit Price incl. VAT

24

O-ring 20,35x1,78

288474

£0,52 Unit Price incl. VAT

25

Oil filter

82635R

Not Available

26

Special screw

483776

£4,81 Unit Price incl. VAT

27

Oil pressure sensor

82580R

Not Available

28

Washer 10.5X16X2.5

486075

£1,32 Unit Price incl. VAT

29

Cover

825529

£2,36 Unit Price incl. VAT

30

Hose clamp

825481

£1,24 Unit Price incl. VAT

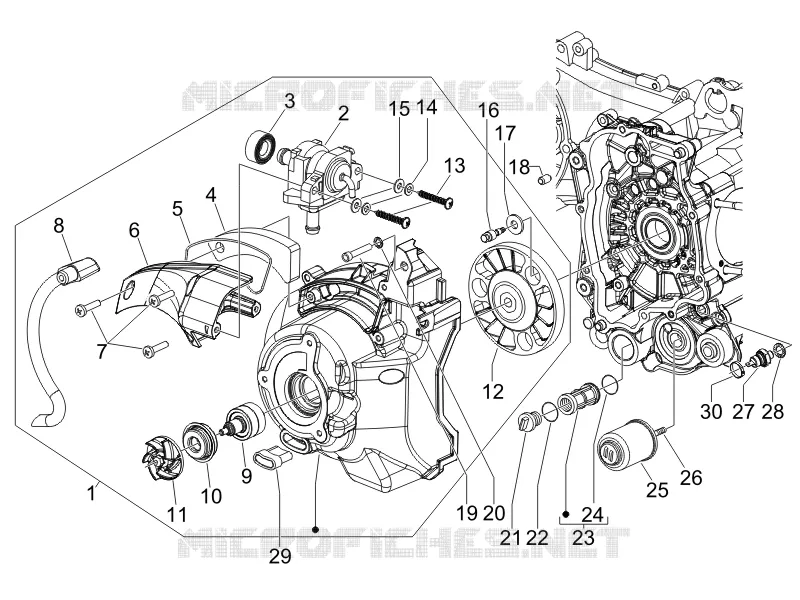

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
