Engine displacement
250
2
Model
GTS
3
Year
2009
4
Trim
GTS ABS
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Head unit - Valve
by
Crankcase cover - Crankcase cooling
Fork/steering tube - Steering bearing unit
1
2
7
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
43
44
45
46
47
48
49
51
52
53
54
55
56
57
58
60
61
62
63
64
65
66
68
69
70
71
73
74
75
76
1
Steering tube ring nut
011109
Not Available
2
Upper thrust ring
56297R
Not Available
7
Lower steering bearing
56298R
Not Available
10
Steering security plate
582787
£1,91 Unit Price incl. VAT
11
Spring plate
CM017410
£0,71 Unit Price incl. VAT
12
Spring plate
CM017410
£0,71 Unit Price incl. VAT
13
Metric screw TBC
259348
£1,04 Unit Price incl. VAT
14
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
15
Nut
969224
£0,16 Unit Price incl. VAT
16
Split pin
012789
Not Available
17
Nut
021114
Not Available
18
Cap
177609
£3,76 Unit Price incl. VAT
19
Washer
012535
Not Available
20
Nut
021210
Not Available
21
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
22
Pad
174085
£2,87 Unit Price incl. VAT
23
Washer
174088
£1,62 Unit Price incl. VAT
24
Pad
174874
£3,66 Unit Price incl. VAT
25
Spring washer
709047
£0,70 Unit Price incl. VAT
26
Circlip
006422
Not Available
27
Washer Ø5,3xØ10x0,5
006975
Not Available
28
screw M5x16
031058
Not Available
29
O-ring
177408
£1,33 Unit Price incl. VAT
30
Washer
177414
£1,62 Unit Price incl. VAT
31
Washer
177445
£1,62 Unit Price incl. VAT
32
Ring
177521
£1,62 Unit Price incl. VAT
33
Pad
266841
£1,86 Unit Price incl. VAT
34
Pinion
267819
£3,60 Unit Price incl. VAT
35
Plate
269118
Not Available
36
Bracket
273693
£16,19 Unit Price incl. VAT
37
Maintenance
564053
Not Available
38
Maintenance
597758
£184,43 Unit Price incl. VAT
39
Drawn cap
177436
Not Available
40
Ring
177494
£4,73 Unit Price incl. VAT
41
Snap ring
006635
Not Available
43
Roller cage
177442
£7,33 Unit Price incl. VAT
44
Gasket ring
177443
£3,55 Unit Price incl. VAT
45
Bearing
177610
£20,51 Unit Price incl. VAT
46
Hex socket screw M6x20
271147
Not Available
47
Brake disc
564573
Not Available
48
Wheel hub
601122
Not Available
49
Tone wheel assembly
600924
£91,79 Unit Price incl. VAT
51
Arm complete steering tube
1U0000765
Not Available
52
Gasket
006731
Not Available
53
Gasket ring
119219
£1,58 Unit Price incl. VAT
54
Piston pin
177451
£22,88 Unit Price incl. VAT
55
Roller cage
198513
£15,49 Unit Price incl. VAT
56
Suspension arm
56140R5
Not Available
57
SHOCK ABSORBER
56263R
Not Available
57
Complete front shock absorber
56286R
Not Available
58
Cover
092517
Not Available
60
Elastic spring
231590
£0,60 Unit Price incl. VAT
61
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
62
Front suspension arm cover
561433
Not Available
63
Front suspension cover
59861500ND
Not Available
63
Front suspension cover
598615
Not Available
63
Front suspension cover
59861500DE
£82,72 Unit Price incl. VAT
63
Front suspension arm cover
598615000C
Not Available
64
Support bracket sensor
601655
Not Available
65
Plain washer 12x5.2x1
006078
Not Available
66
Washer
016343
Not Available
68
Spring washer 13,75x8,15x4,5
016408
Not Available
69
Nut M8x6,5
020108
Not Available
70
Hex screw M8x22
031119
Not Available
71
Hose clamp
598134
£7,12 Unit Price incl. VAT
73
Plain washer 5,4x10x0,8
003055
Not Available
74
screw
842041
£0,97 Unit Price incl. VAT
75
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
76
Encoder sensor
6006655
Not Available

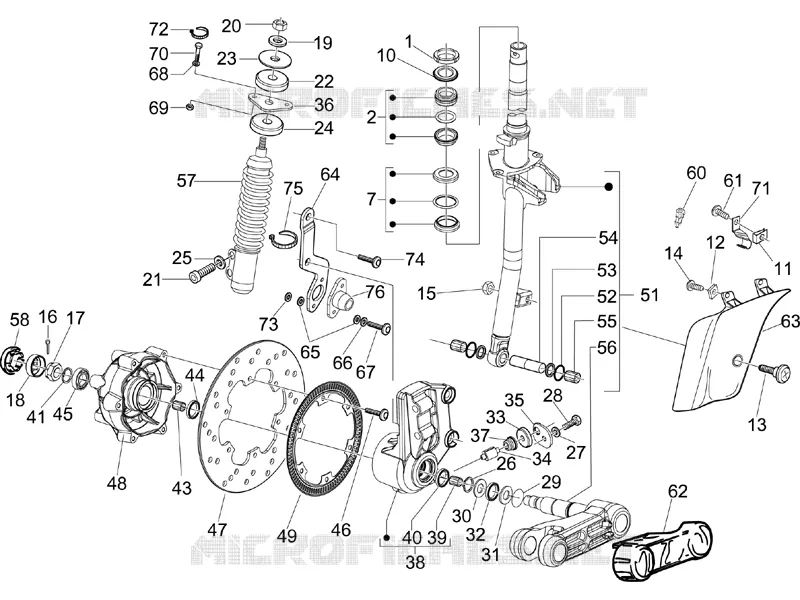

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
