1
Engine displacement
250
2
Model
GTS
3
Year
2006
4
Trim
GTS ABS
5
Parts Catalog
Cylinder head cover
6
Parts Diagram
Parts Catalog
Swinging arm
by
Wheel huosing - Mudguard

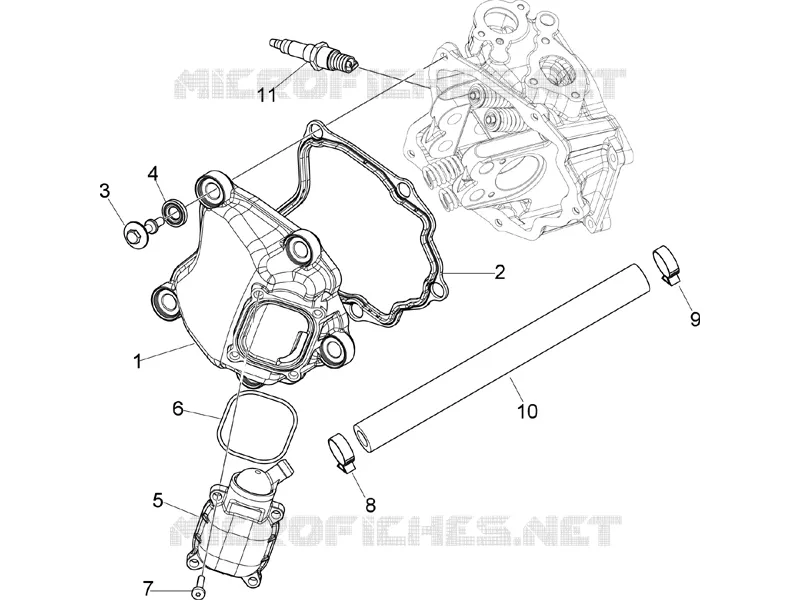

Cylinder head cover
1
2
3
4
5
6
7
8
9
10
11
1
Head cover
829534
£87,38 Unit Price incl. VAT
2
Head cover gasket
829536
£13,79 Unit Price incl. VAT
3
Special screw
872635
£1,97 Unit Price incl. VAT
4
Damper drift
830249
£0,76 Unit Price incl. VAT
5
Oil breather valve
828421
Not Available
6
Gasket
487989
Not Available
7
Self tapping screw M5x20
877136
£0,16 Unit Price incl. VAT
8
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
9
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
10
Engine oil breather pipe
844094
£15,66 Unit Price incl. VAT
11
Spark plug RG4HCX (Champion)
641320
£10,32 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
