Engine displacement
300
2
Model
GTS
3
Year
2012
4
Trim
GTS ie
5
Parts Catalog
Side cover - Spoiler
6
Parts Diagram
Parts Catalog
Cylinder head cover
by
Frame/bodywork
Side cover - Spoiler
1
2
3
3
3
3
3
3
4
5
6
7
8
9
9
10
10
11
11
12
12
13
14
15
15
16
16
1
Right side cover
62113800HA
Not Available
1
Right side cover
62113800XN2
Not Available
1
Right side cover
62113800HH
£151,87 Unit Price incl. VAT
1
Right side cover
621138
Not Available
1
Right side cover
62113800MD
£151,87 Unit Price incl. VAT
1
Right side cover
62113800DE
Not Available
1
Right side cover
62113800EU
£151,87 Unit Price incl. VAT
1
Right side cover
62113800GV
£151,87 Unit Price incl. VAT
1
Right side cover
62113800T6
£151,87 Unit Price incl. VAT
2
Left side cover
62113700DE
Not Available
2
Left side cover
621137
Not Available
2
Left side cover
62113700MD
£191,12 Unit Price incl. VAT
2
Left side cover
62113700HA
Not Available
2
Left side cover
62113700T6
Not Available
2
Left side cover
62113700EU
Not Available
2
Left side cover
62113700GV
£191,12 Unit Price incl. VAT
2
Left side cover
62113700XN2
Not Available
2
Left side cover
62113700HH
£191,12 Unit Price incl. VAT
3
Pad
1B000888
£2,94 Unit Price incl. VAT
4
RH terminal
57747400MD
£44,72 Unit Price incl. VAT
4
RH terminal
57747400HA
Not Available
4
RH terminal
57747400T6
Not Available
4
RH terminal
57747400GV
£44,72 Unit Price incl. VAT
4
RH terminal
577474
Not Available
4
RH terminal
57747400XN2
Not Available
4
RH terminal
57747400DE
Not Available
4
RH terminal
57747400EU
£44,72 Unit Price incl. VAT
4
RH terminal
57747400HH
£44,72 Unit Price incl. VAT
5
LH terminal
57747300T6
£44,72 Unit Price incl. VAT
5
LH terminal
57747300HA
Not Available
5
LH terminal
57747300XN2
Not Available
5
LH terminal
57747300MD
£44,72 Unit Price incl. VAT
5
LH terminal
57747300GV
£44,72 Unit Price incl. VAT
5
LH terminal
57747300HH
£44,72 Unit Price incl. VAT
5
LH terminal
577473
Not Available
5
LH terminal
57747300DE
Not Available
5
LH terminal
57747300EU
Not Available
6
Self-tapping screw
CM179101
£1,27 Unit Price incl. VAT
7
Spring plate
CM017410
£0,71 Unit Price incl. VAT
8
Self-tap screw
CM178609
£1,27 Unit Price incl. VAT
9
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
10
Expansion plug
199190
£0,17 Unit Price incl. VAT
11
Fairing fixing plate
623575
£7,64 Unit Price incl. VAT
12
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
13
Left lateral retroreflector
584083
Not Available
14
Right lateral retroreflector
584084
Not Available
15
Gasket
584995
£6,44 Unit Price incl. VAT
16
Spring plate
181351
£0,98 Unit Price incl. VAT

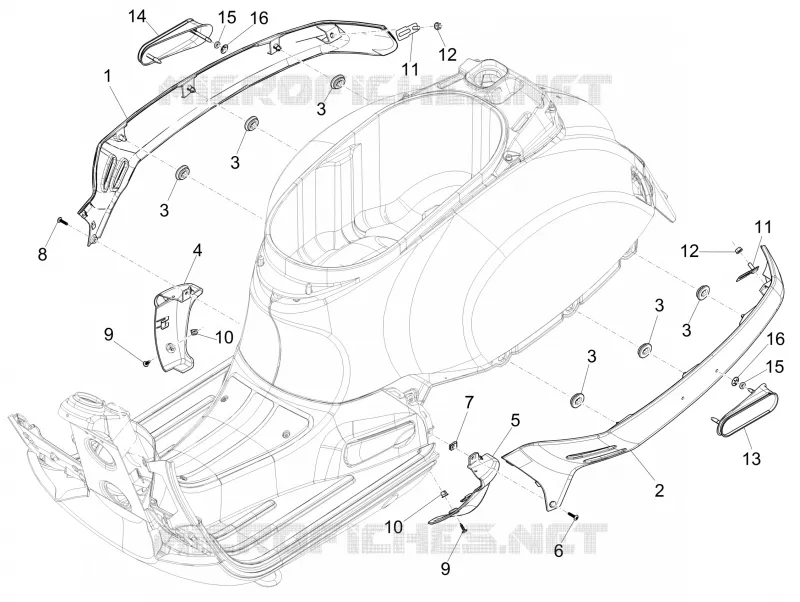

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
