1
Engine displacement
300
2
Model
GTS
3
Year
2015
4
Trim
GTS ie ABS
5
Parts Catalog

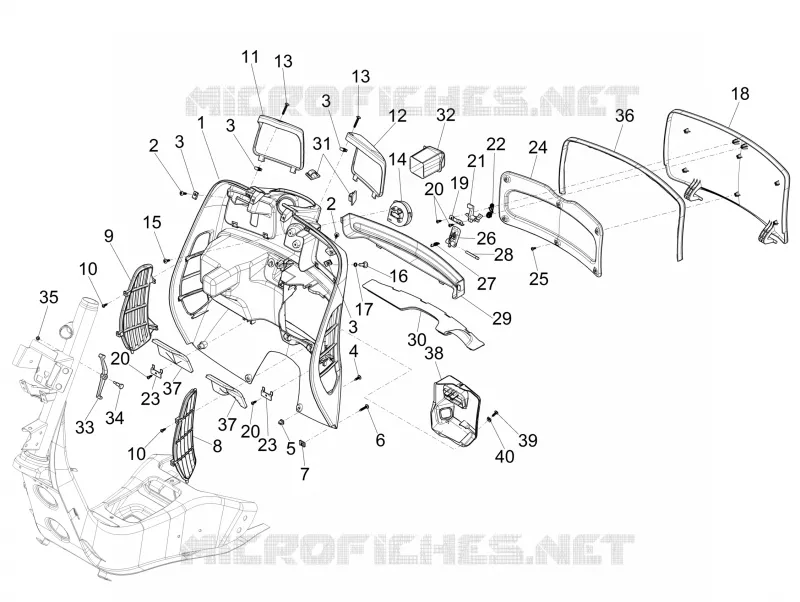

Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Wheel huosing - Mudguard
by
Anti-percolation system
Front glove-box - Knee-guard panel
1
2
2
3
3
3
3
4
5
6
7
8
9
10
10
11
12
13
13
14
15
16
17
18
19
20
20
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
39
40
1
Front glove comp.
1B000992000DE
Not Available
1
Front glove comp.
1B000992000MD
Not Available
1
Front glove comp.
1B000992
Not Available
1
Front glove comp.
1B000992000HA
Not Available
1
Front glove comp.
1B000992000XN2
Not Available
1
Front glove comp.
1B000992000HH
Not Available
1
Front glove comp.
1B000992000T6
Not Available
2
Self-tap screw
CM178604
£1,24 Unit Price incl. VAT
3
Plate
CM017408
£0,30 Unit Price incl. VAT
4
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
5
Expansion plug
157716
£0,16 Unit Price incl. VAT
6
Self-tapping screw
CM178610
£1,24 Unit Price incl. VAT
7
Spring plate
CM017410
£0,71 Unit Price incl. VAT
8
Net panel (l)
577856000C
Not Available
9
Net panel (r)
577857000C
£24,24 Unit Price incl. VAT
10
Plug screw
268596
£0,62 Unit Price incl. VAT
11
Right flap
577396000C
£54,76 Unit Price incl. VAT
12
Left flap
577395000C
£54,76 Unit Price incl. VAT
13
Self tapping screw
CM178607
£1,24 Unit Price incl. VAT
14
Bag holder hook
575819
£14,98 Unit Price incl. VAT
15
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
16
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
17
Washer 8,6x6,2x1
641548
£2,30 Unit Price incl. VAT
18
Glove compartment door
57717500T6
Not Available
18
Glove compartment door
577175
£179,41 Unit Price incl. VAT
18
Glove compartment door
57717500MD
Not Available
18
Glove compartment door
57717500HA
£240,00 Unit Price incl. VAT
18
Glove compartment door
57717500HH
£182,86 Unit Price incl. VAT
18
Glove compartment door
57717500DE
£190,69 Unit Price incl. VAT
18
Glove compartment door
57717500XN2
£240,00 Unit Price incl. VAT
19
Square
252420
£3,88 Unit Price incl. VAT
20
Plug screw
268596
£0,62 Unit Price incl. VAT
21
Pawl
575607
£3,14 Unit Price incl. VAT
22
Spring
577005
Not Available
23
Door fixing bracket
257614
£1,72 Unit Price incl. VAT
24
Counter flap
577468
£42,22 Unit Price incl. VAT
25
Self tapping screw
297498
£0,60 Unit Price incl. VAT
26
Lever
577861
£5,75 Unit Price incl. VAT
27
Spring
577399
£7,40 Unit Price incl. VAT
28
Pin
577400
£4,68 Unit Price incl. VAT
29
Rim
577447
£12,71 Unit Price incl. VAT
30
paratia interna bauletto
623776
£16,98 Unit Price incl. VAT
31
Spring clamp
577594
£4,72 Unit Price incl. VAT
32
Cover
620452
£7,10 Unit Price incl. VAT
33
Special screw
299972
£1,14 Unit Price incl. VAT
34
Lock lever
577453
£4,28 Unit Price incl. VAT
35
Self locking nut
577620
£0,97 Unit Price incl. VAT
36
Flap packing
CM006311
£13,00 Unit Price incl. VAT
37
Sound proof panel
620693
£17,82 Unit Price incl. VAT
38
Top box cover
1B001752
£11,04 Unit Price incl. VAT
39
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
40
Spring plate
CM017410
£0,71 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
