1
Engine displacement
300
2
Model
GTV
3
Year
2014
4
Trim
GTV 4T 4V ie Touring
5
Parts Catalog

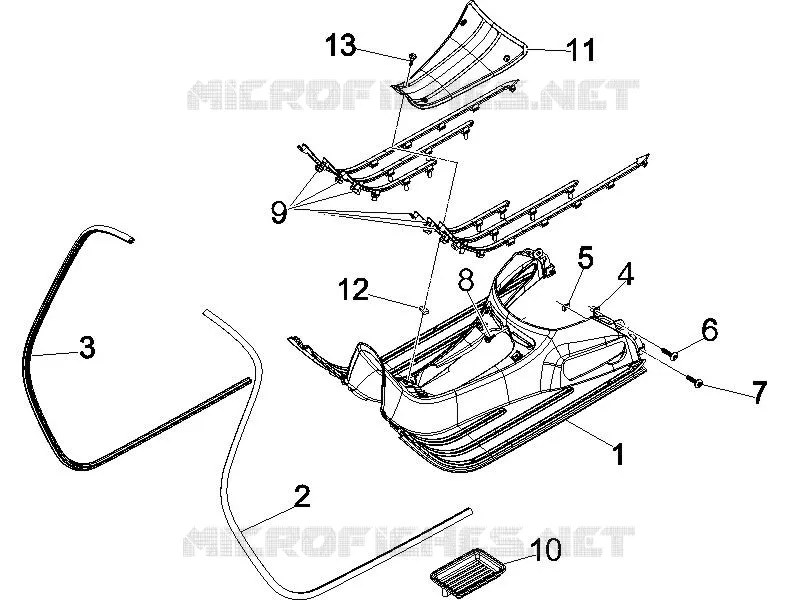

Central cover - Footrests
6
Parts Diagram
Parts Catalog
Head unit - Valve
by
Meter combination - Cruscotto
Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Footrest
65663700M5
Not Available
1
Footrest
656637
Not Available
1
Footrest
65663700M4
Not Available
1
Footrest
65663700HF
Not Available
1
Footrest
65663700VG
Not Available
2
Left-hand shield edge
577180
£26,70 Unit Price incl. VAT
3
Right-hand shield edge
577181
£26,70 Unit Price incl. VAT
4
Expansion plug
199190
£0,17 Unit Price incl. VAT
5
Spring plate M6
254485
£1,64 Unit Price incl. VAT
6
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
7
Metric screw M6x20
259830
Not Available
8
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
9
Kit strips, footboard
656648
Not Available
10
Battery float chamber
1B003942
£15,55 Unit Price incl. VAT
11
Battery cover
577182
£41,38 Unit Price incl. VAT
11
Battery cover
1B001014
£54,68 Unit Price incl. VAT
12
Spring plate
CM017410
£0,71 Unit Price incl. VAT
13
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
