Engine displacement
300
2
Model
GTV
3
Year
2015
4
Trim
GTV 4T 4V ie Touring
5
Parts Catalog
Flywheel magneto cover - Oil filter
6

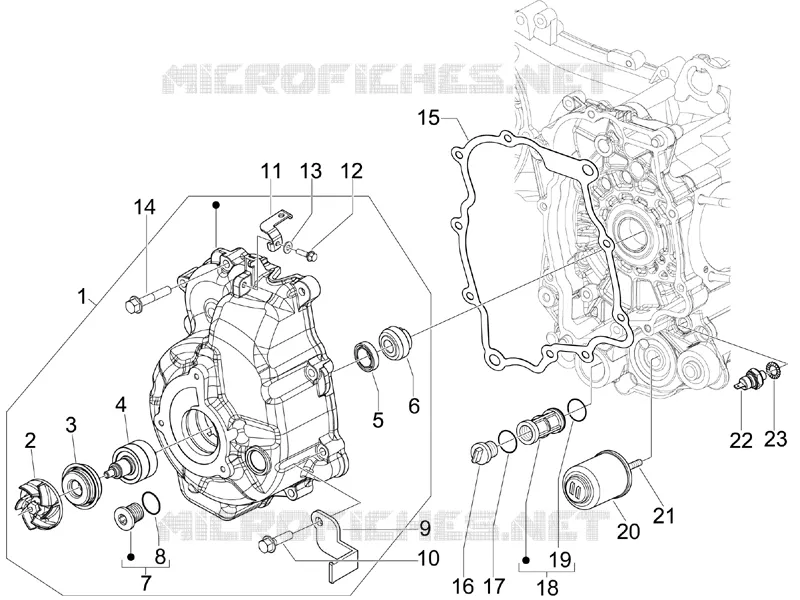

Parts Diagram
Parts Catalog
Cylinder head cover
by
Brakes pipes - Calipers
Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Flywheel cover cpl.
8798315
£211,82 Unit Price incl. VAT
2
Water pump impeller cpl.
844730
£12,84 Unit Price incl. VAT
3
Gasket ring
82991R
£27,28 Unit Price incl. VAT
4
Water pump shaft assy.
8447595
£57,52 Unit Price incl. VAT
5
Gasket ring 20x30x5
82897R
£12,89 Unit Price incl. VAT
6
Pump impeller drive key
842389
£31,21 Unit Price incl. VAT
7
Timing plug assembly
8290405
£16,91 Unit Price incl. VAT
8
O-ring
479986
Not Available
9
Lambda probe plate
847716
£1,85 Unit Price incl. VAT
10
screw M6x112,5
B016807
£1,90 Unit Price incl. VAT
11
Cable retainer plate
847717
£1,39 Unit Price incl. VAT
12
Screw w/ flange
484123
£0,54 Unit Price incl. VAT
13
Washer
012528
Not Available
14
screw M6x35
414838
£1,27 Unit Price incl. VAT
15
Flywheel housing cover gasket
840504
£10,57 Unit Price incl. VAT
16
Oil filter plug
826165
£22,13 Unit Price incl. VAT
17
O-ring 31,47x1,78
285536
£1,64 Unit Price incl. VAT
18
Intake oil filter
843568
£5,87 Unit Price incl. VAT
19
O-ring 20,35x1,78
288474
£0,52 Unit Price incl. VAT
20
Oil filter
82635R
Not Available
21
Oil filter special screw
840507
£10,91 Unit Price incl. VAT
22
Minimum oil pressure sensor
1D001138
Not Available
23
Washer 10.5X16X2.5
486075
£1,32 Unit Price incl. VAT
